Module 1 Formstorming

Weekly Activity Template

Celine Hermanto

Project 1

Module 1

Experimenting with primary and complex objects from my everyday life, including bottle of serum, tube, liptint, tomato, tape measurer, smiski figurine, headphones, and a little bag.

Activity 1

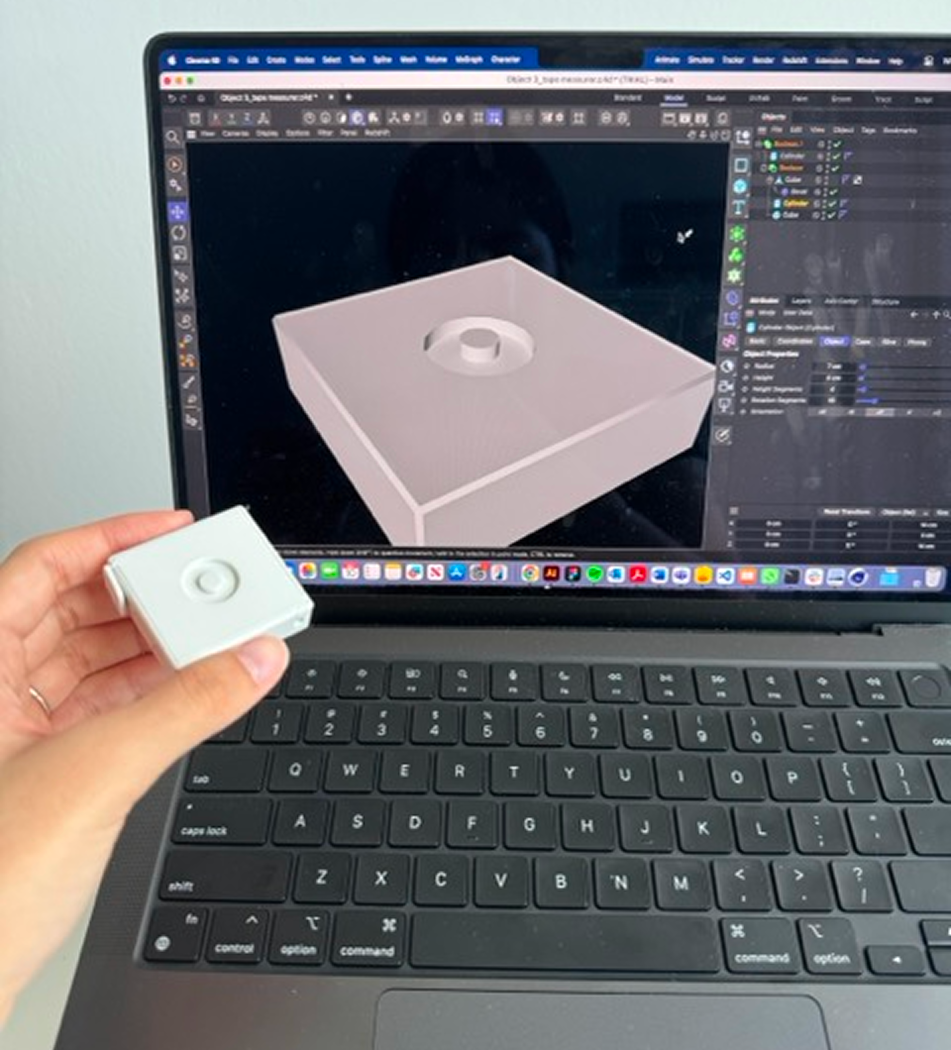

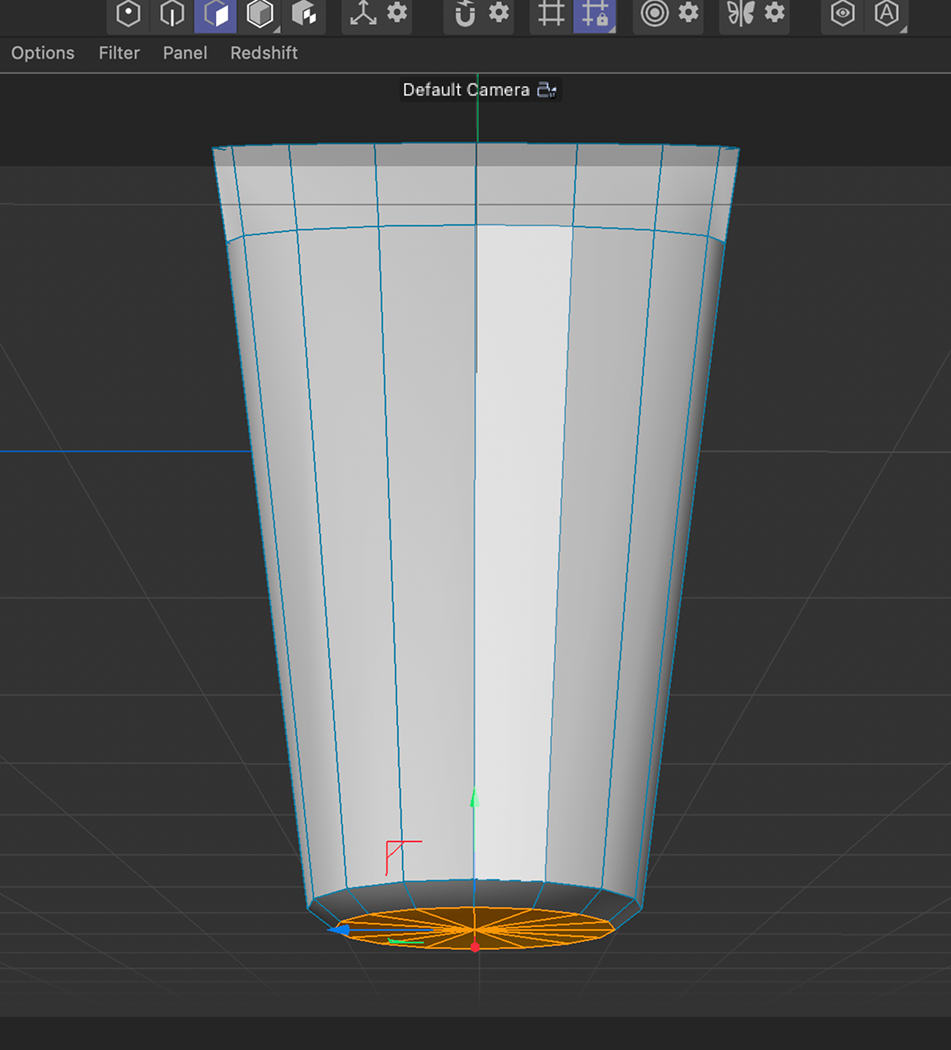

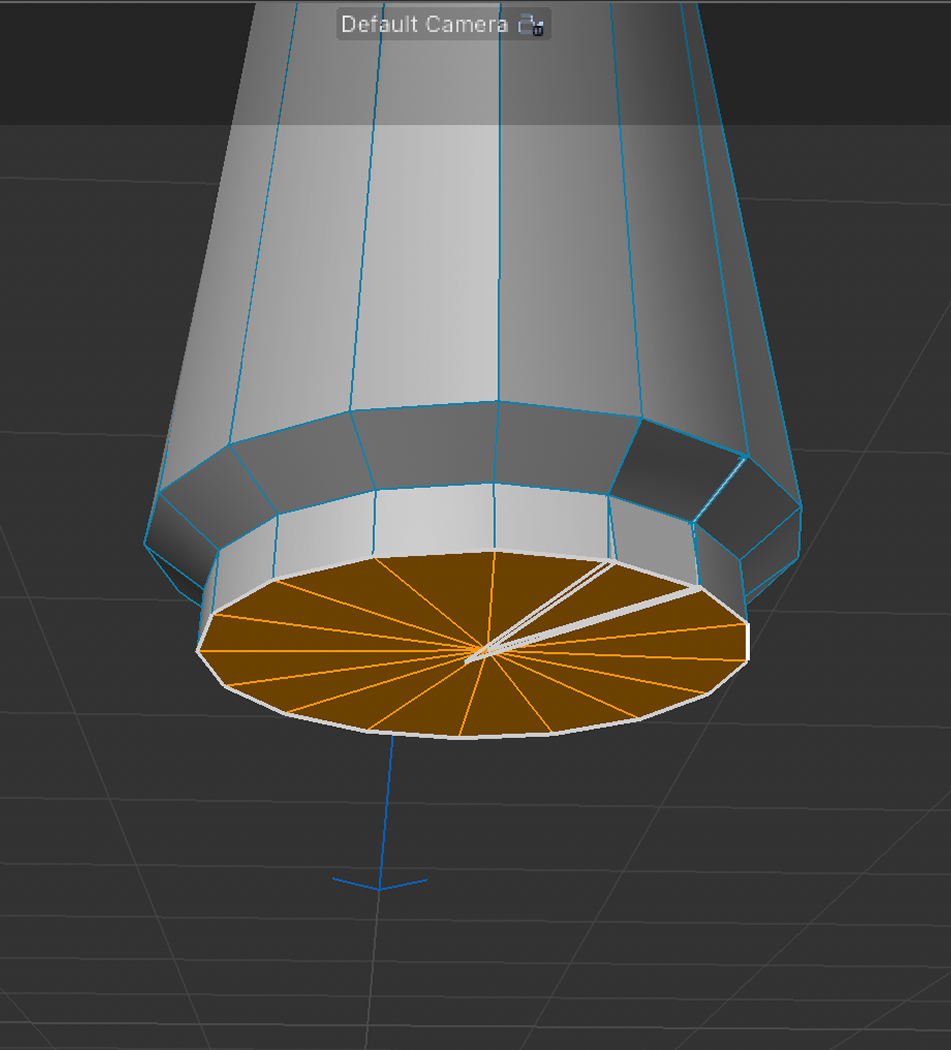

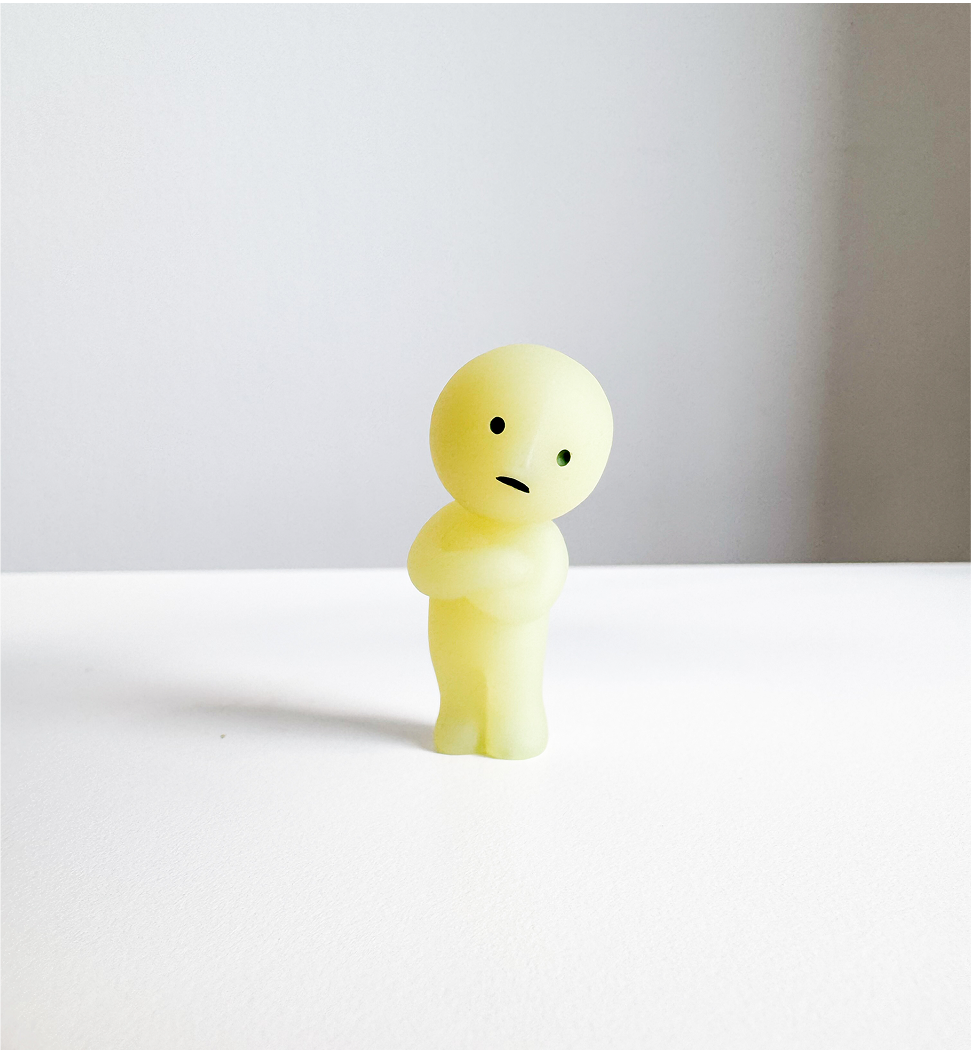

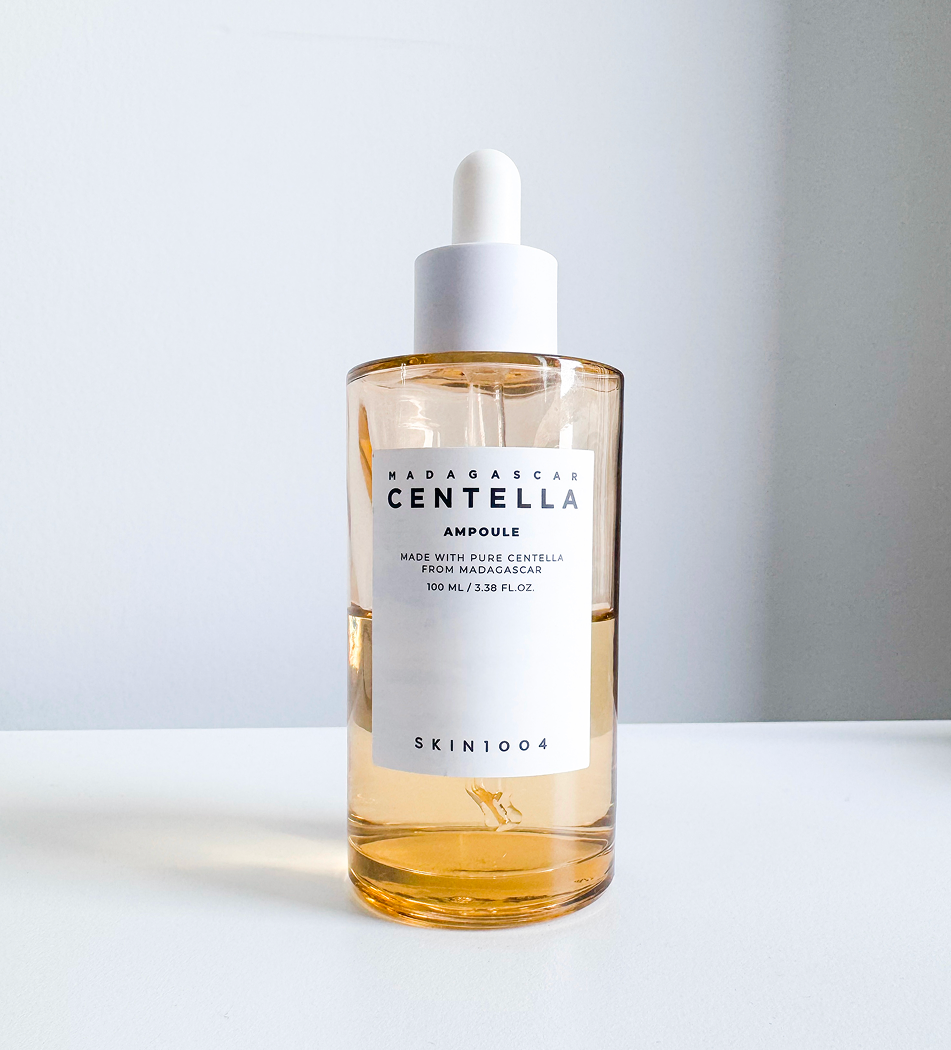

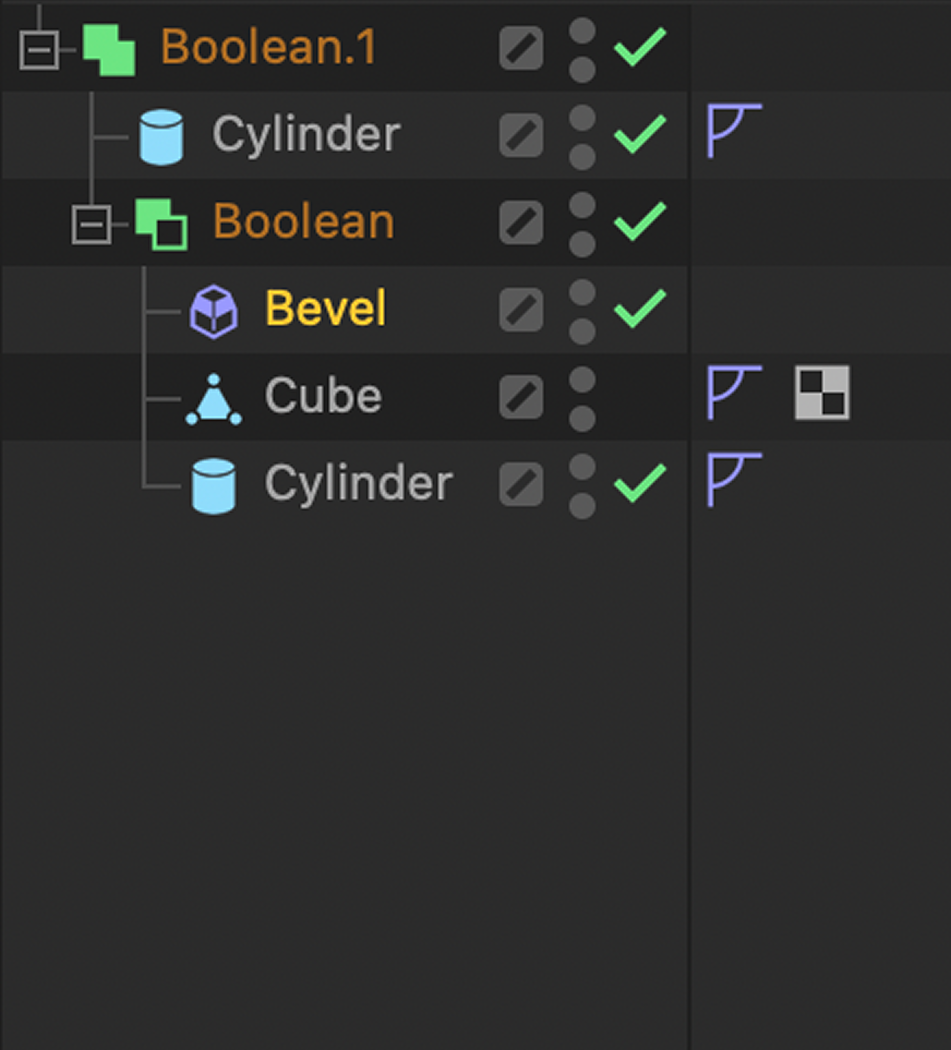

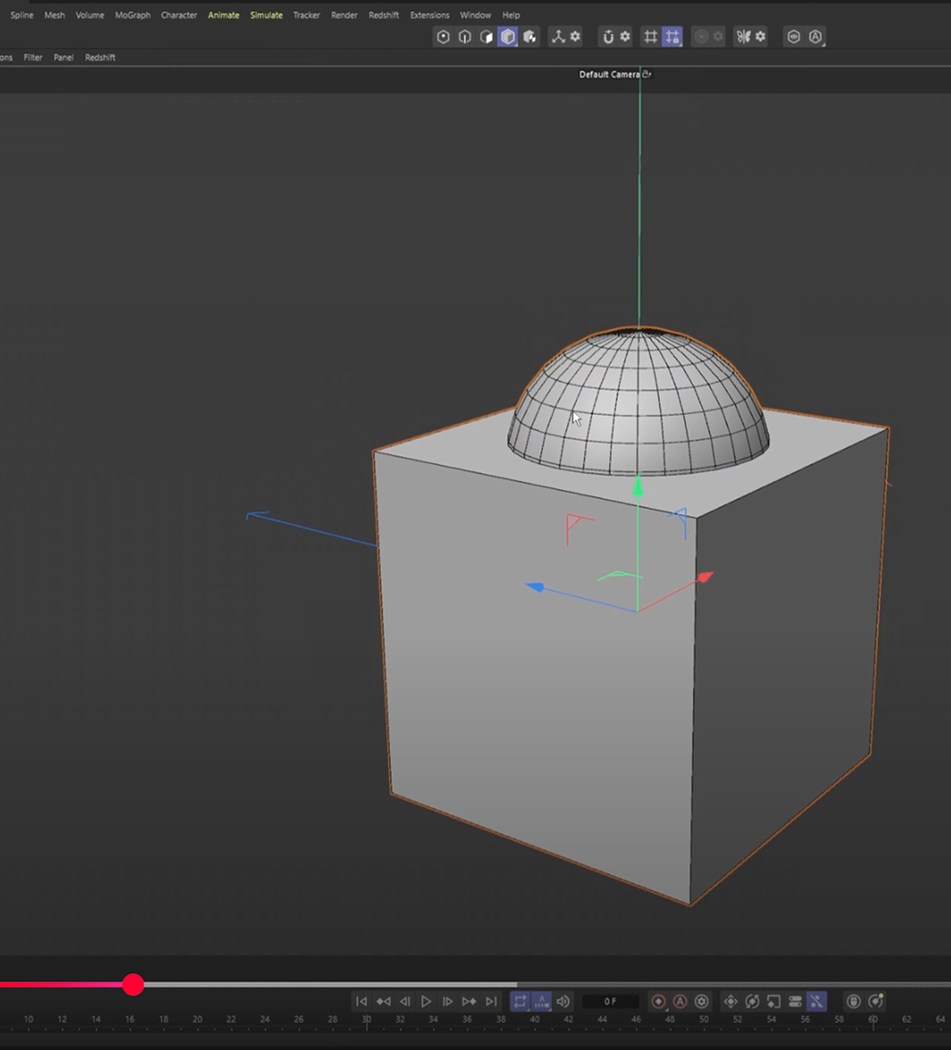

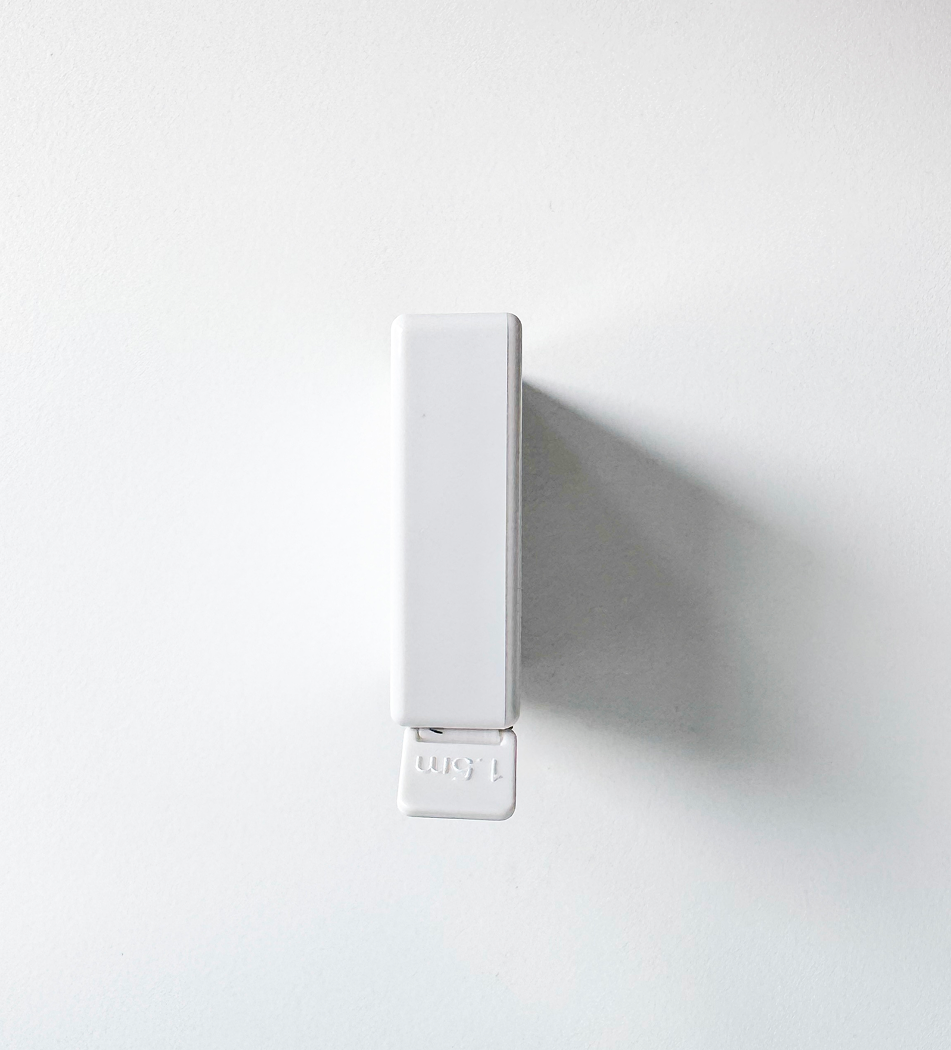

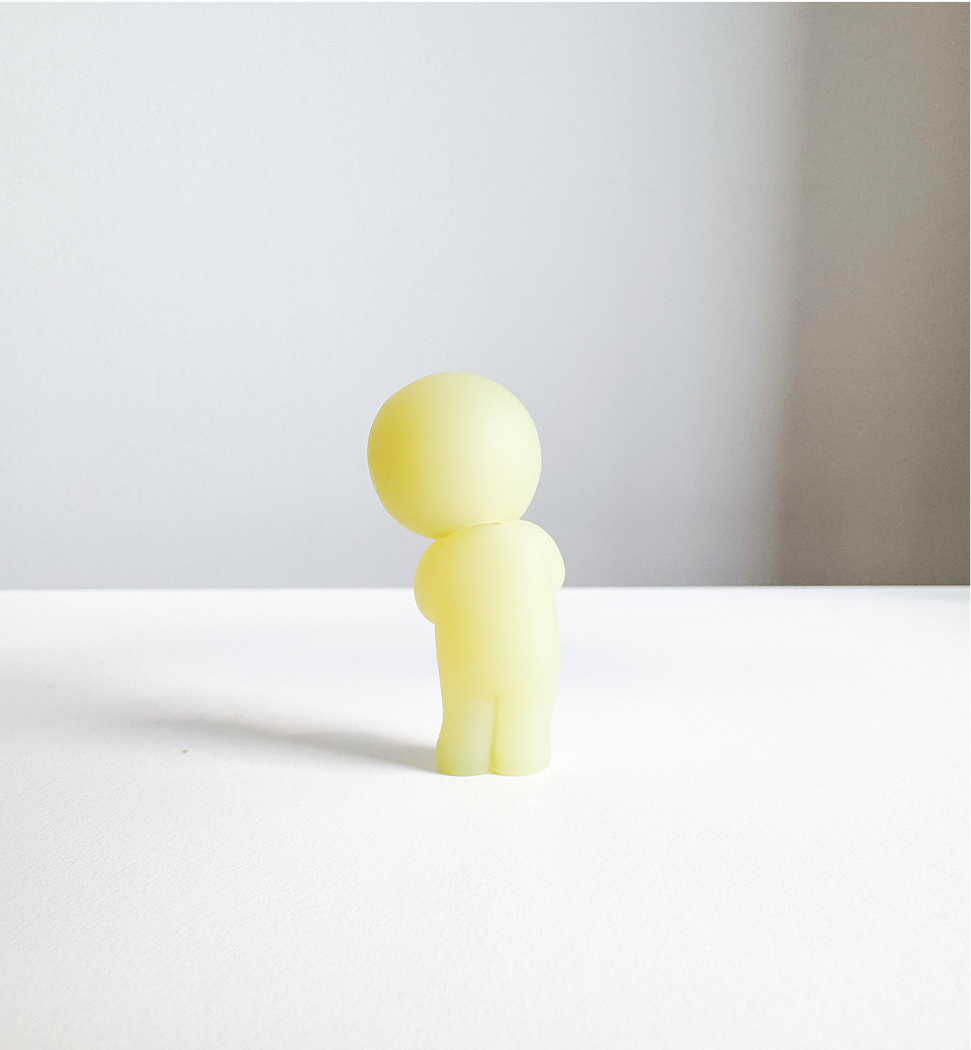

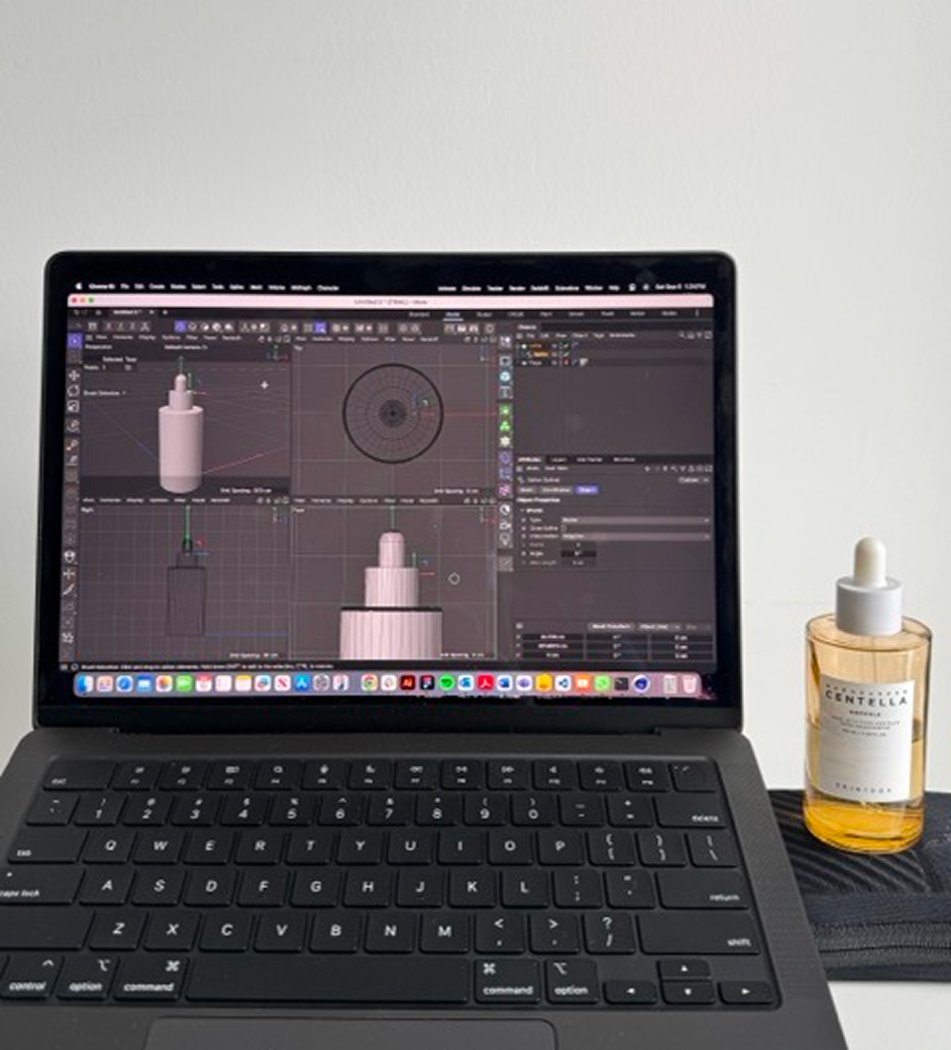

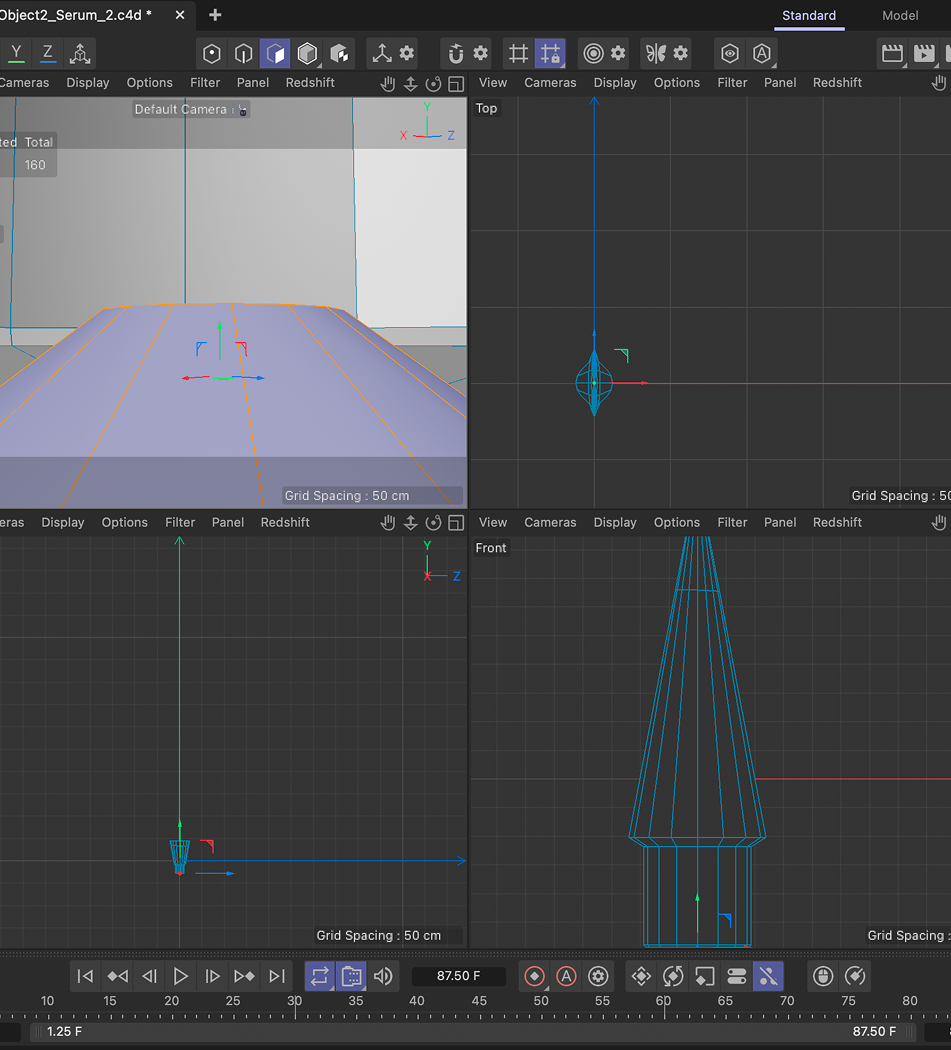

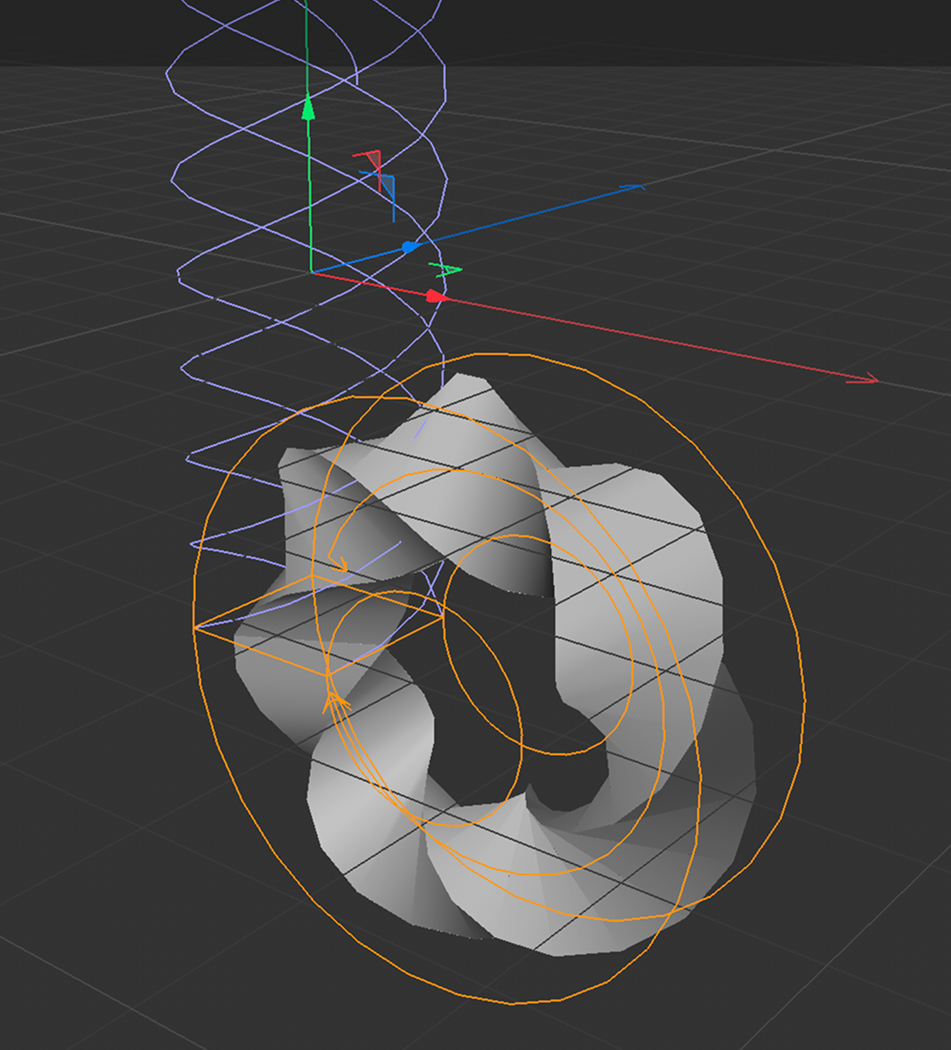

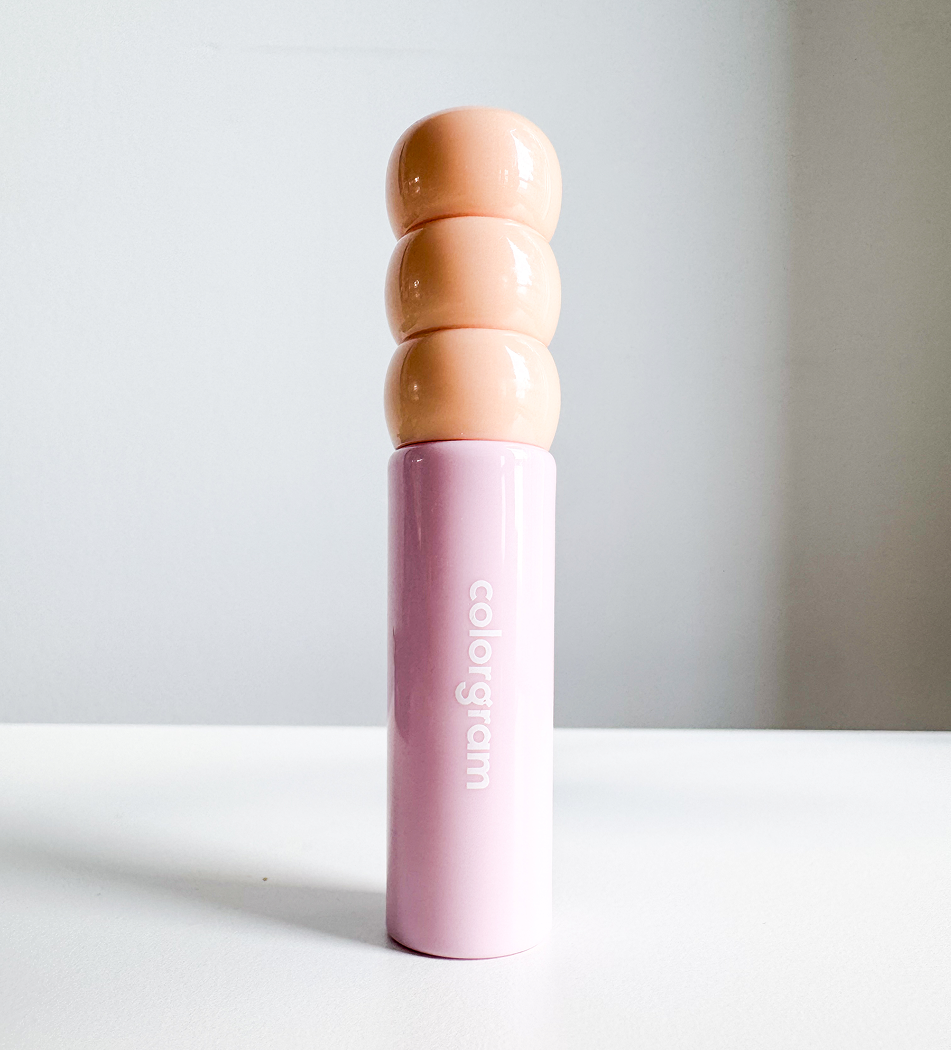

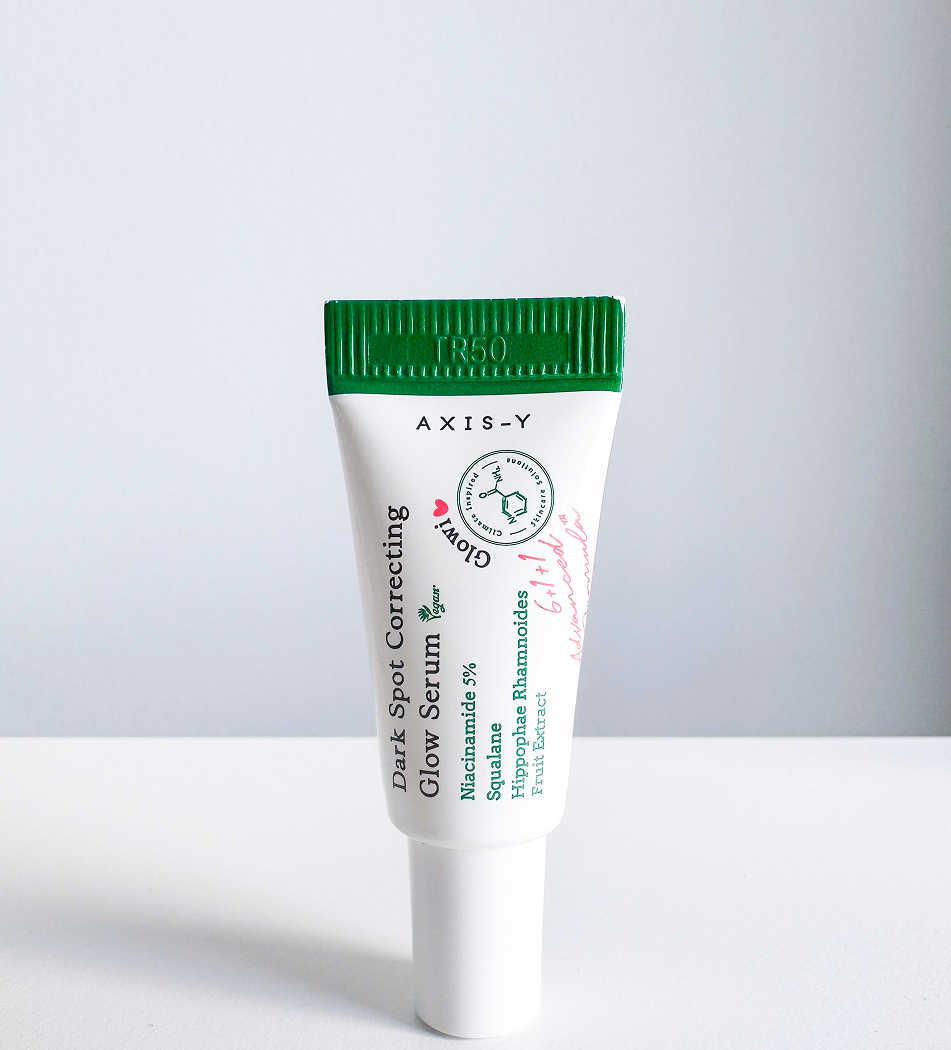

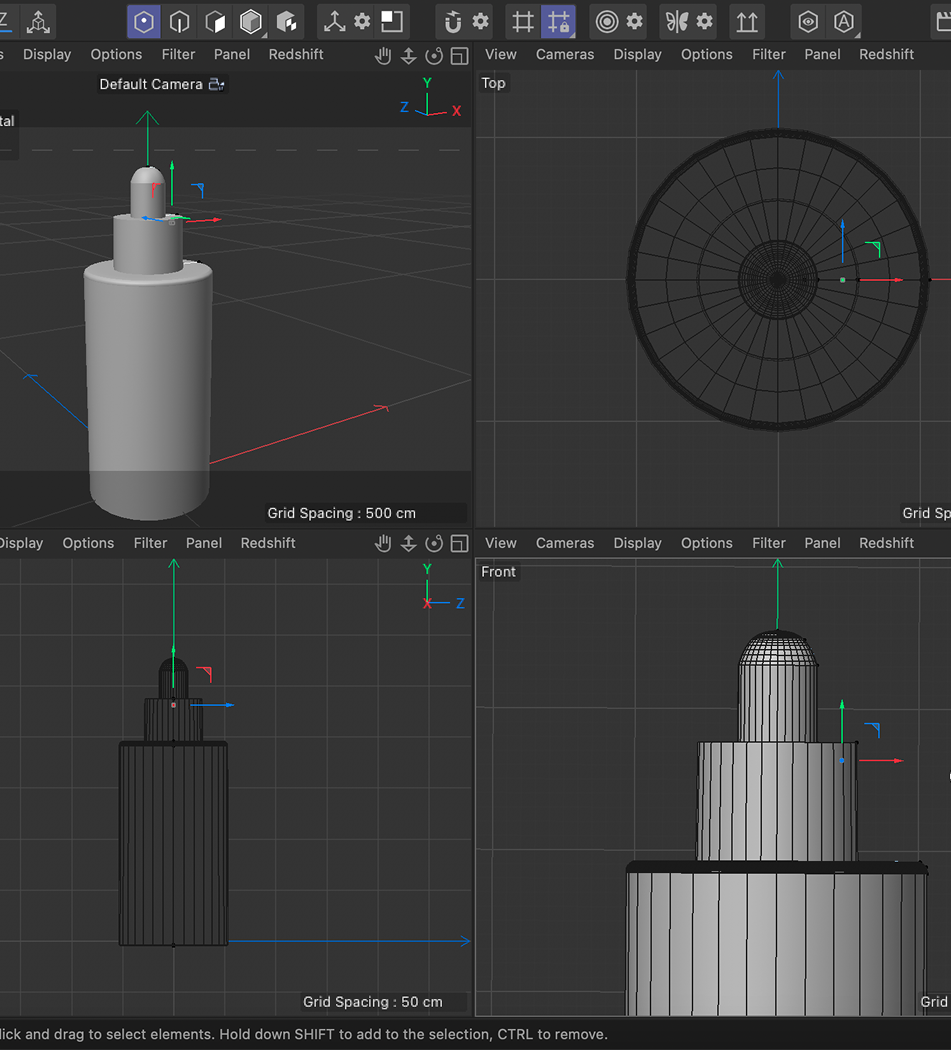

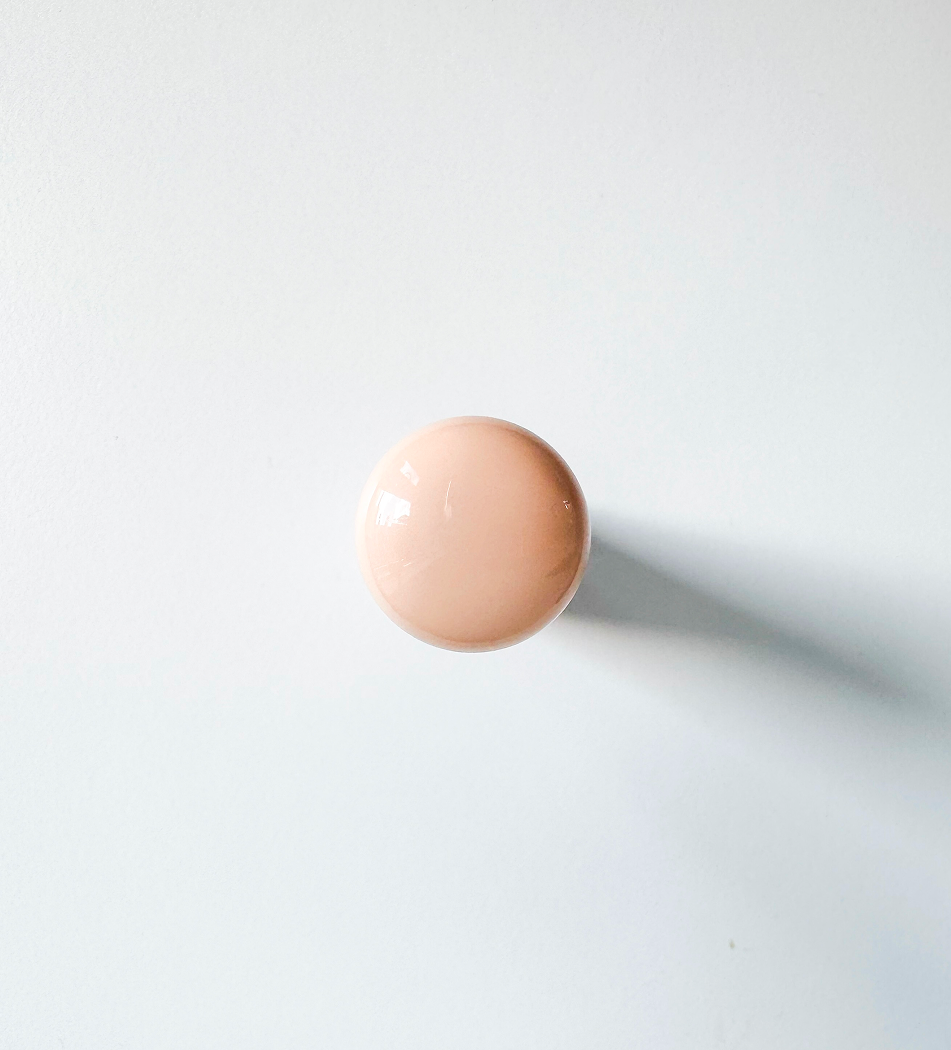

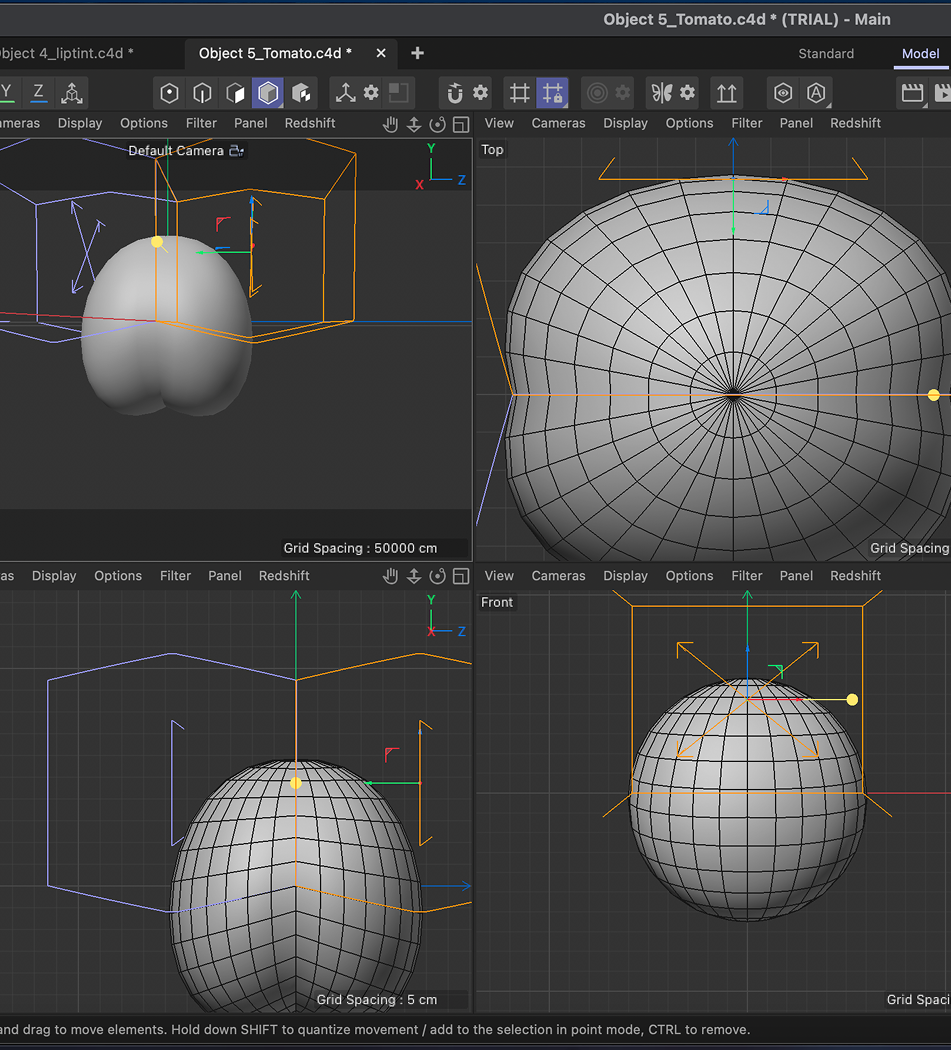

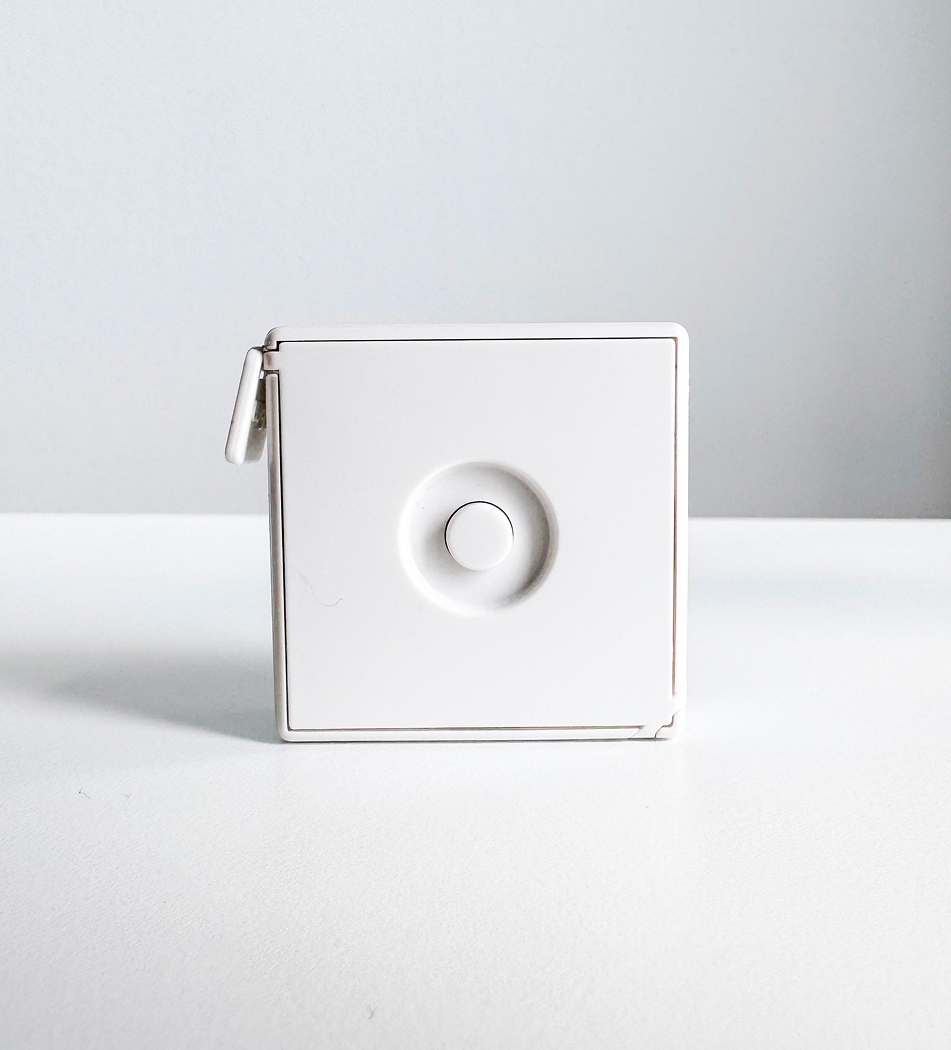

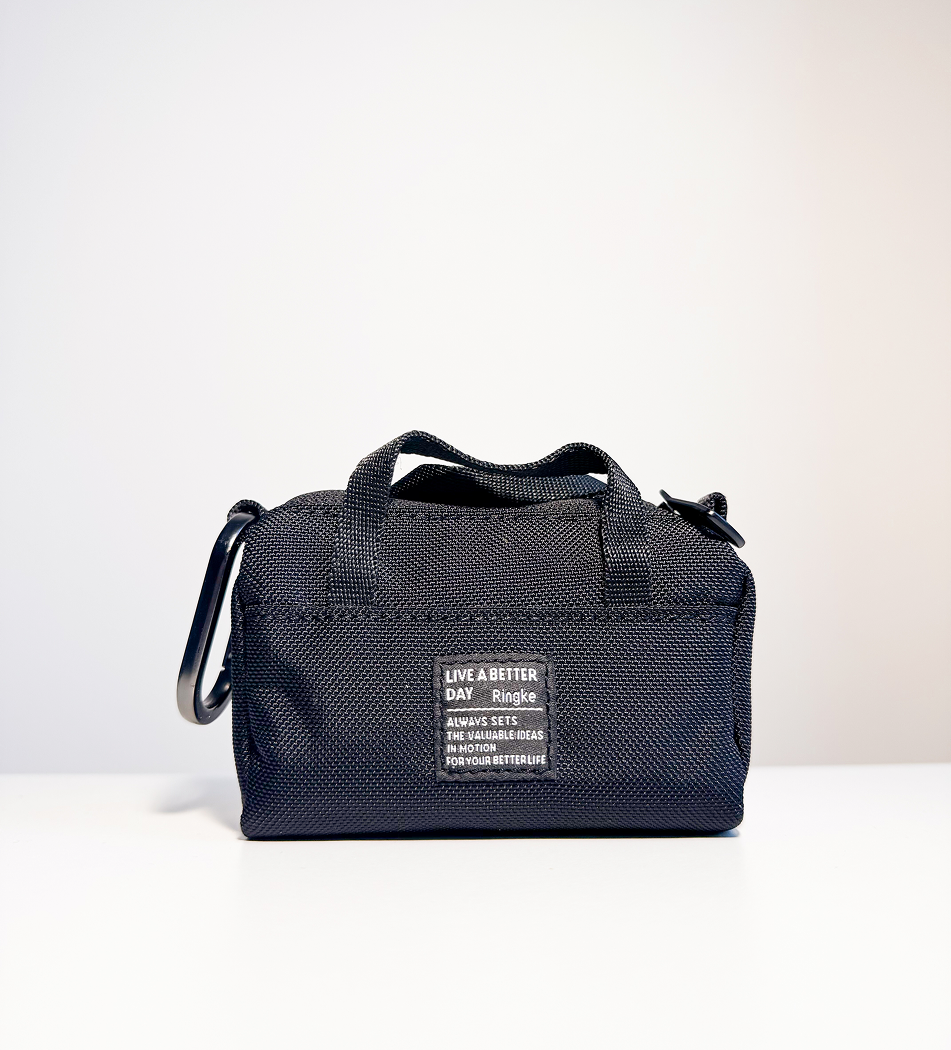

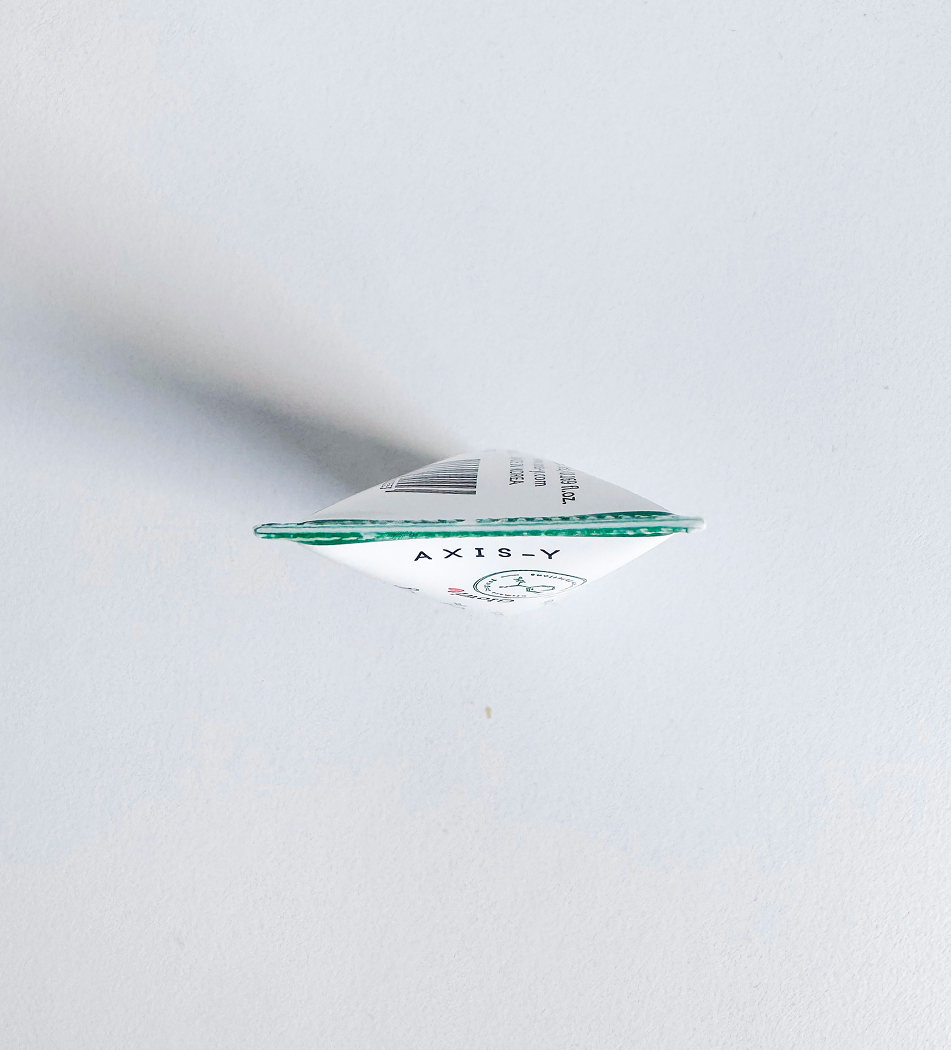

Image of the front view of a liptint Image of a circular screw like object created in Cinema 4D Image of the bottom part of the tube created in Cinema 4D Image of the front view of the tape measurer Image of modeling progress of tape measurer Image of a screw like object created in Cinema 4D Image of the front view of the little bag Image of the layer section of Cinema 4D of modeling the tape measurer Image of the top view of the tomato Image of modeling the tape measurer in Cinema 4D Image of the front view of the tube Image of the modeling process of the serum bottle Image of the top view of the tape measurer Image of the back view of the smiski figurine Image of the video tutorial I watched to model the tape measurer: https://www.youtube.com/watch?v=AOEm5IFbzL0&ab_channel=MitchScott%28BehindtheButton%29 Image of the front side of the tomato Image of the top view of the liptint Image of the modeling progress of the serum bottle Image of the modeling progress of the tomato Image of the top view of the serum Image of the front view of the smiski figurine Image of the modeling progress of the tube Image of the modeling progress of the tube in another view Image of the front view of the serum Image of the back view of the headphone

Activity 2

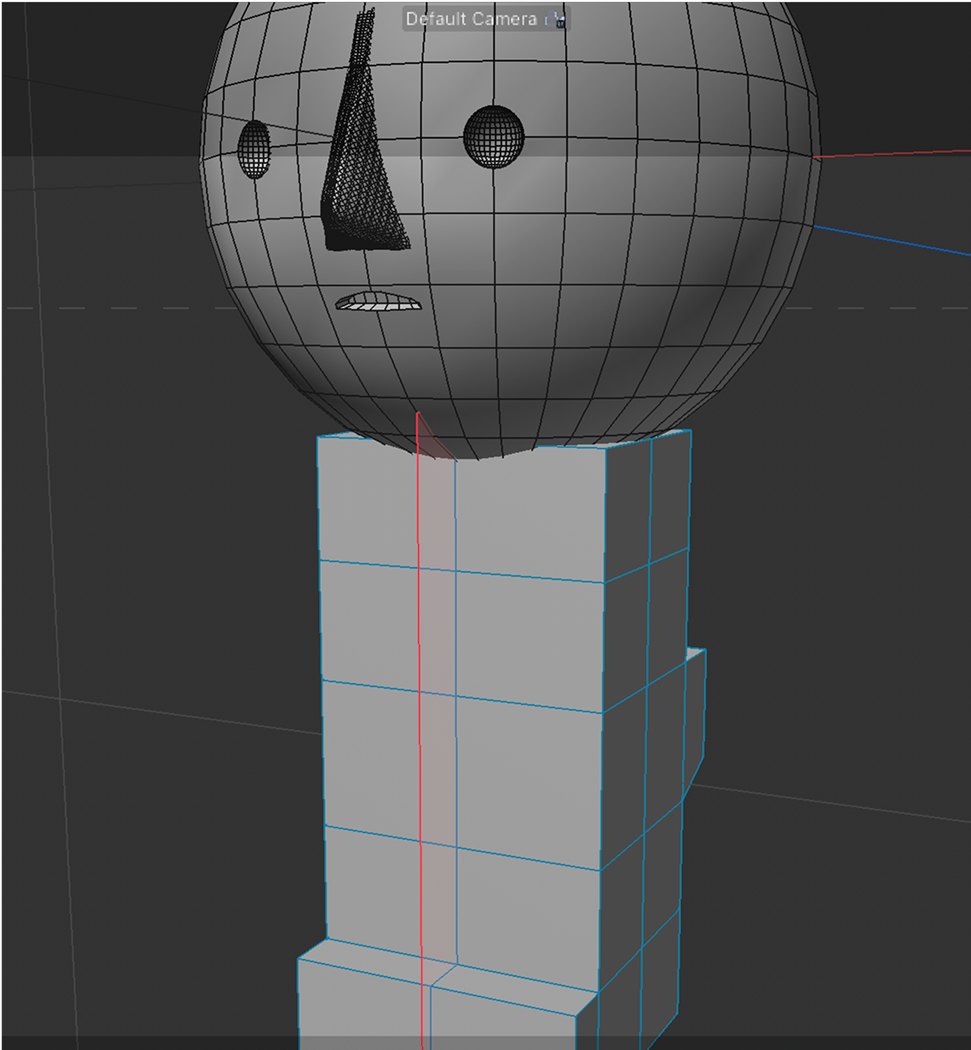

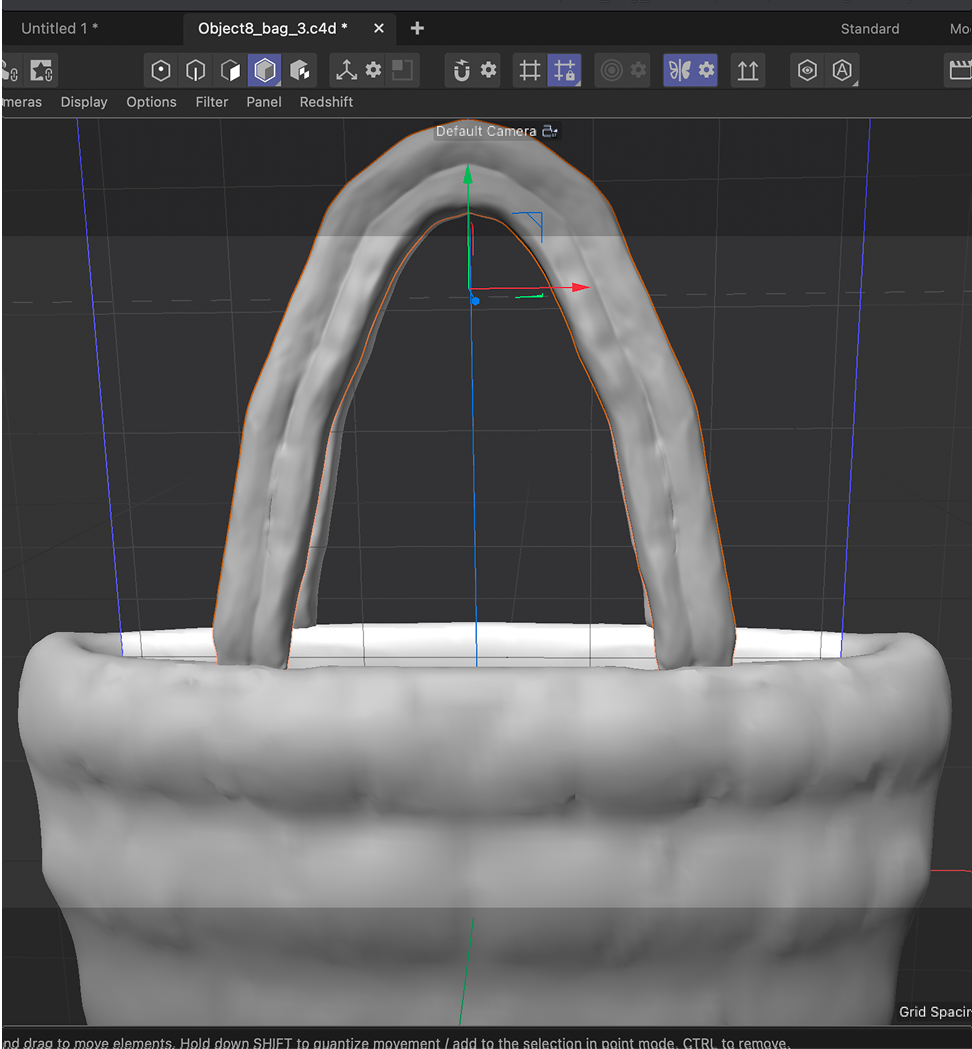

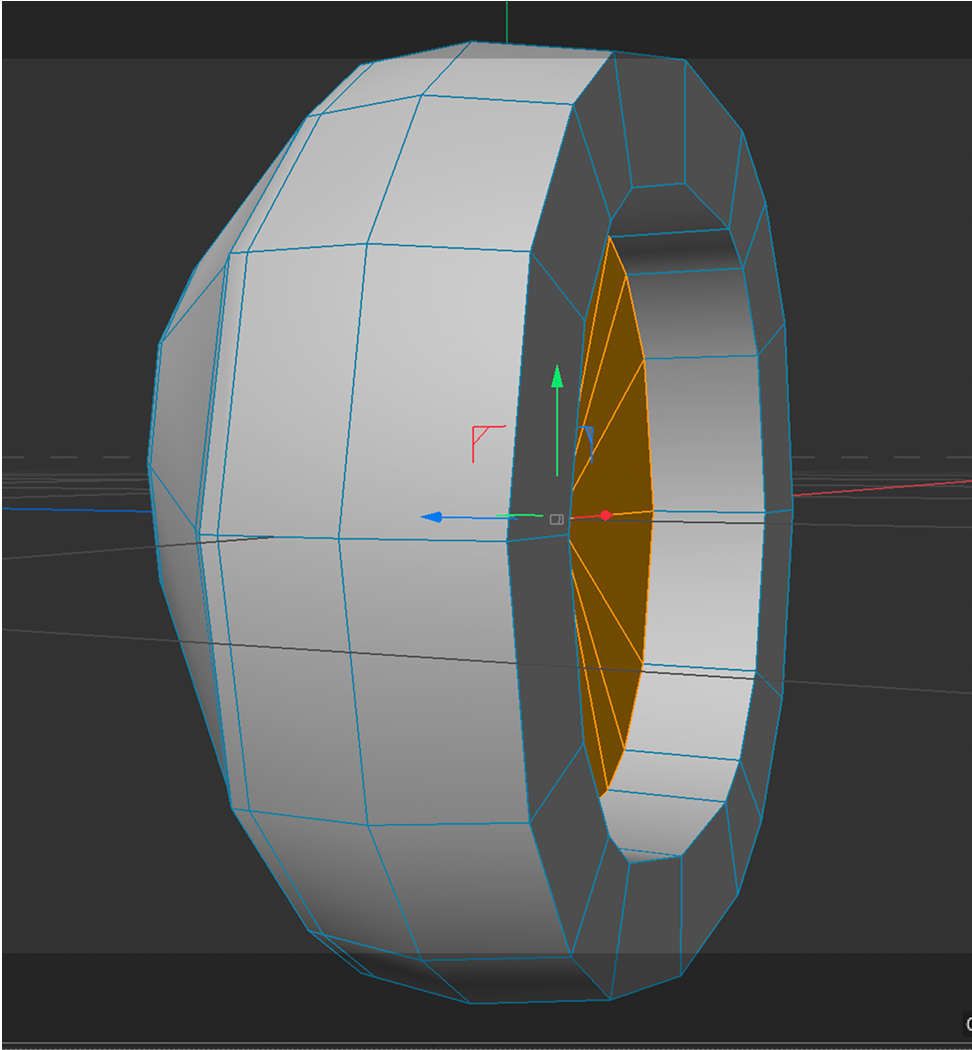

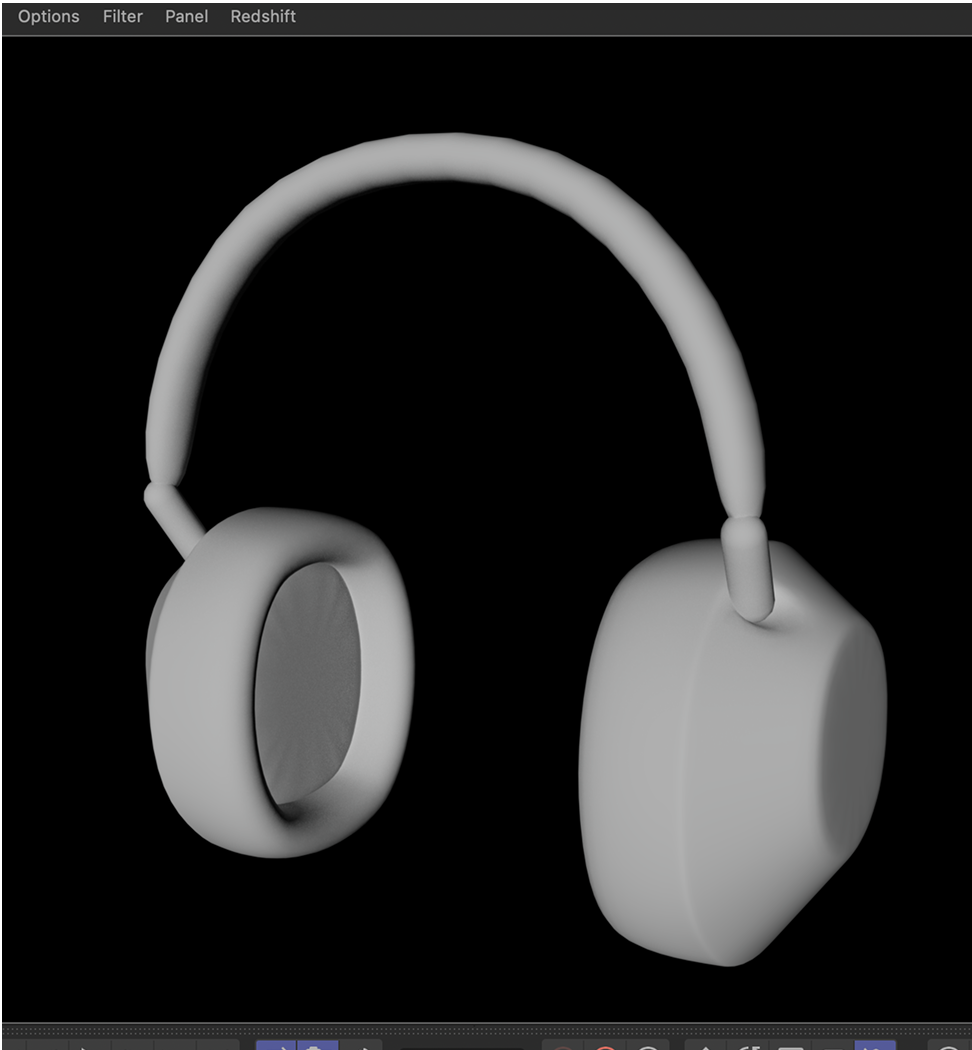

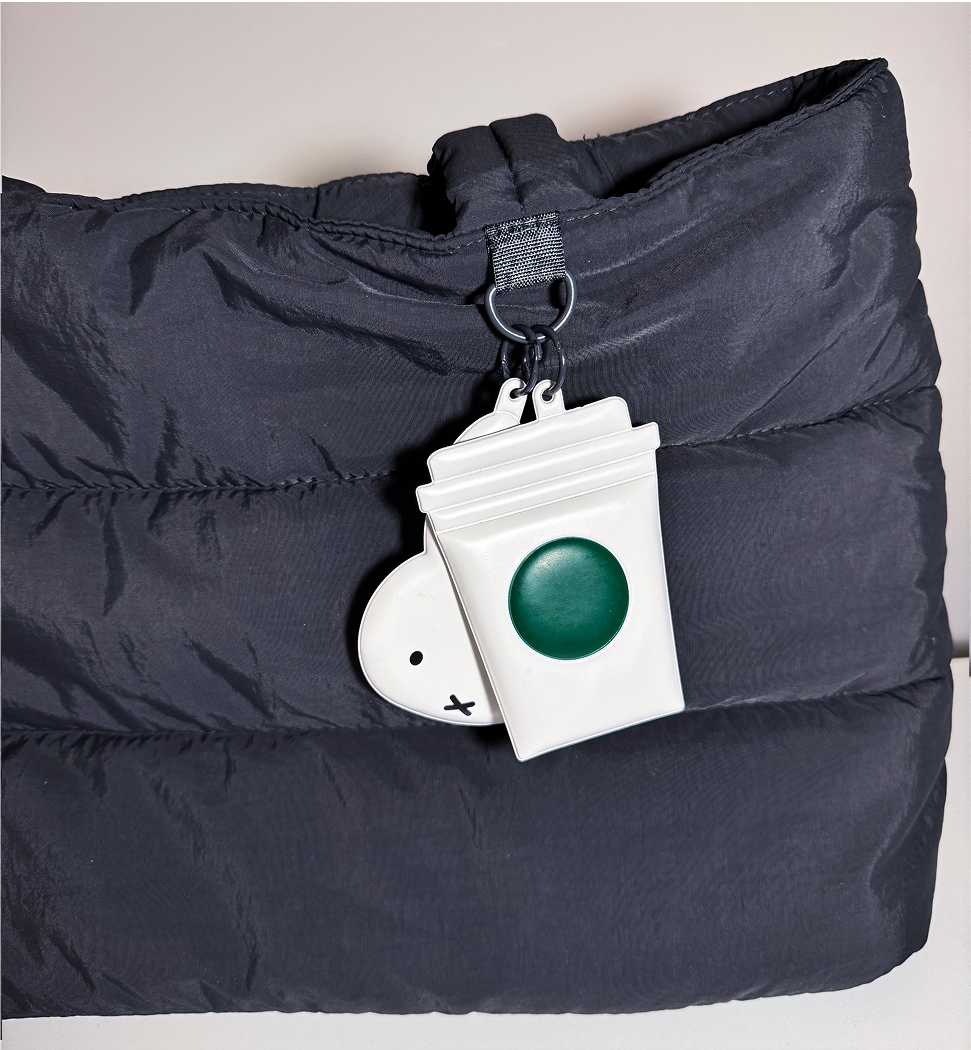

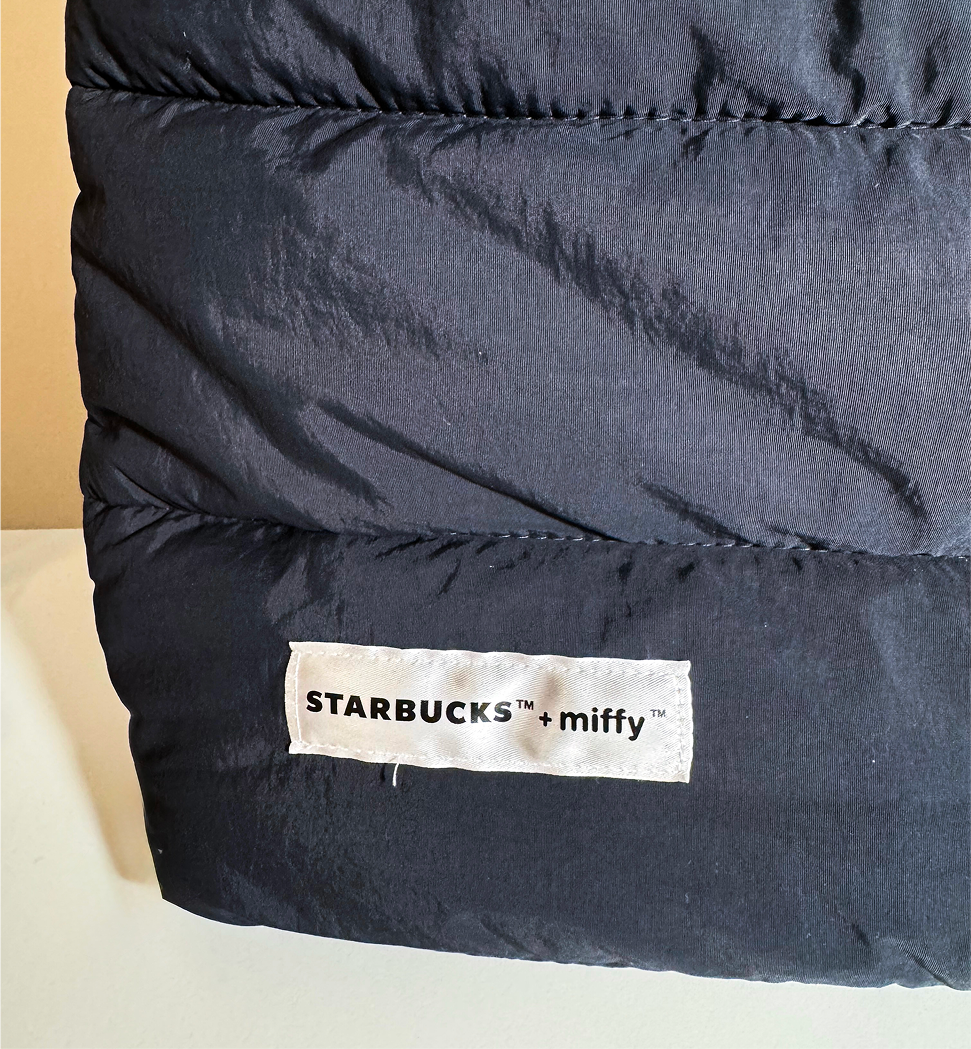

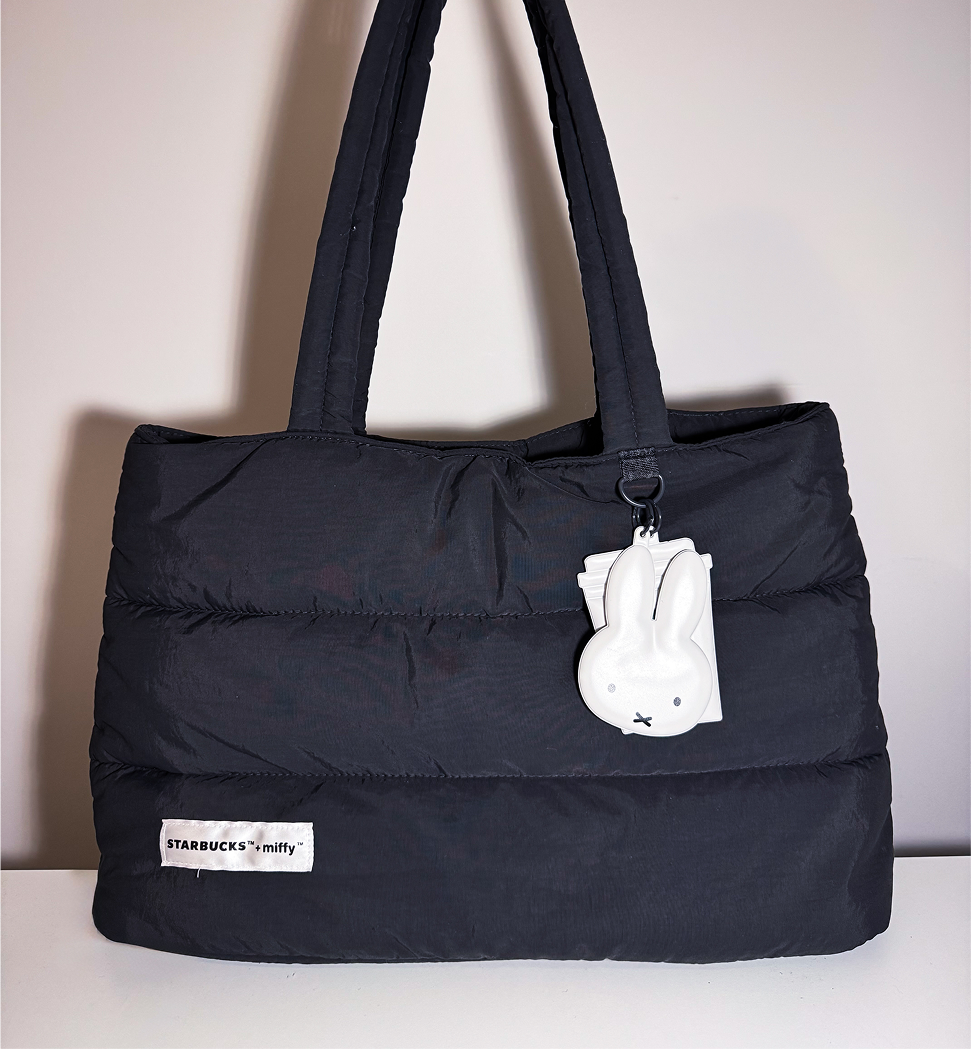

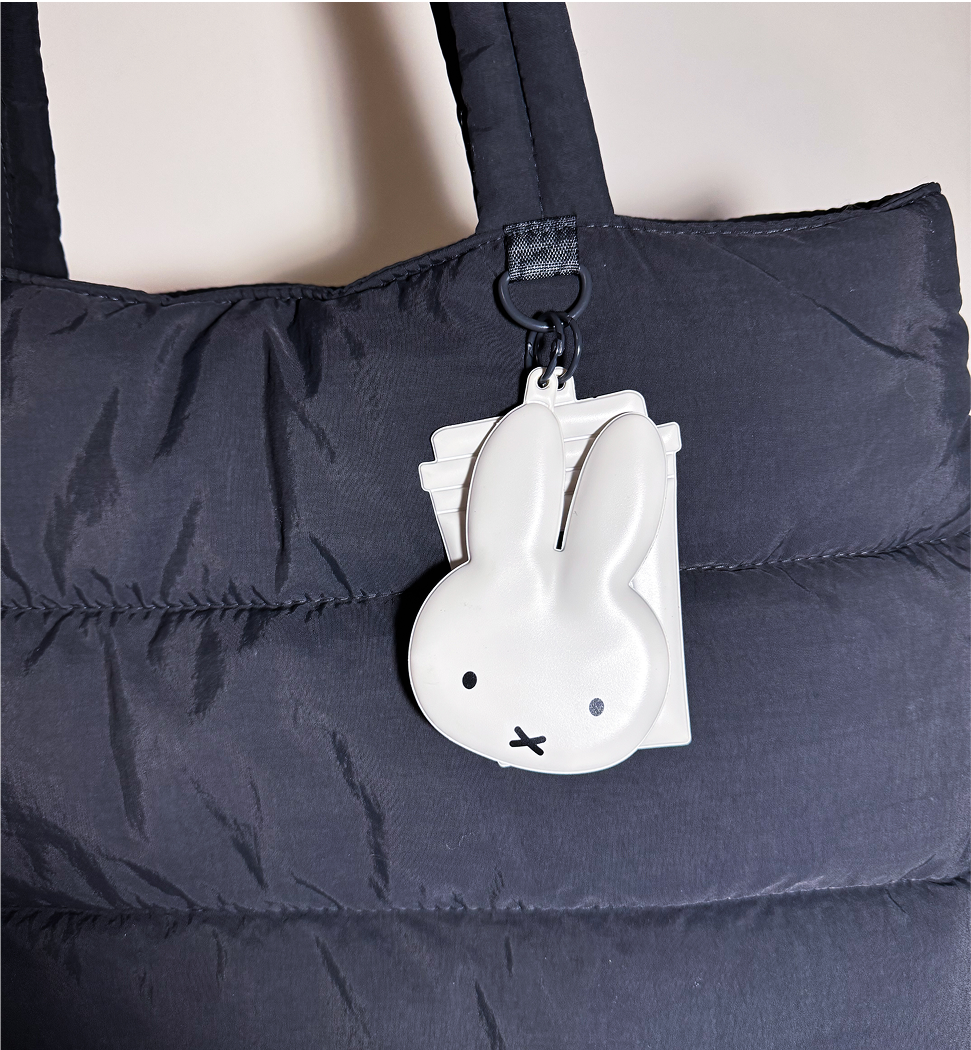

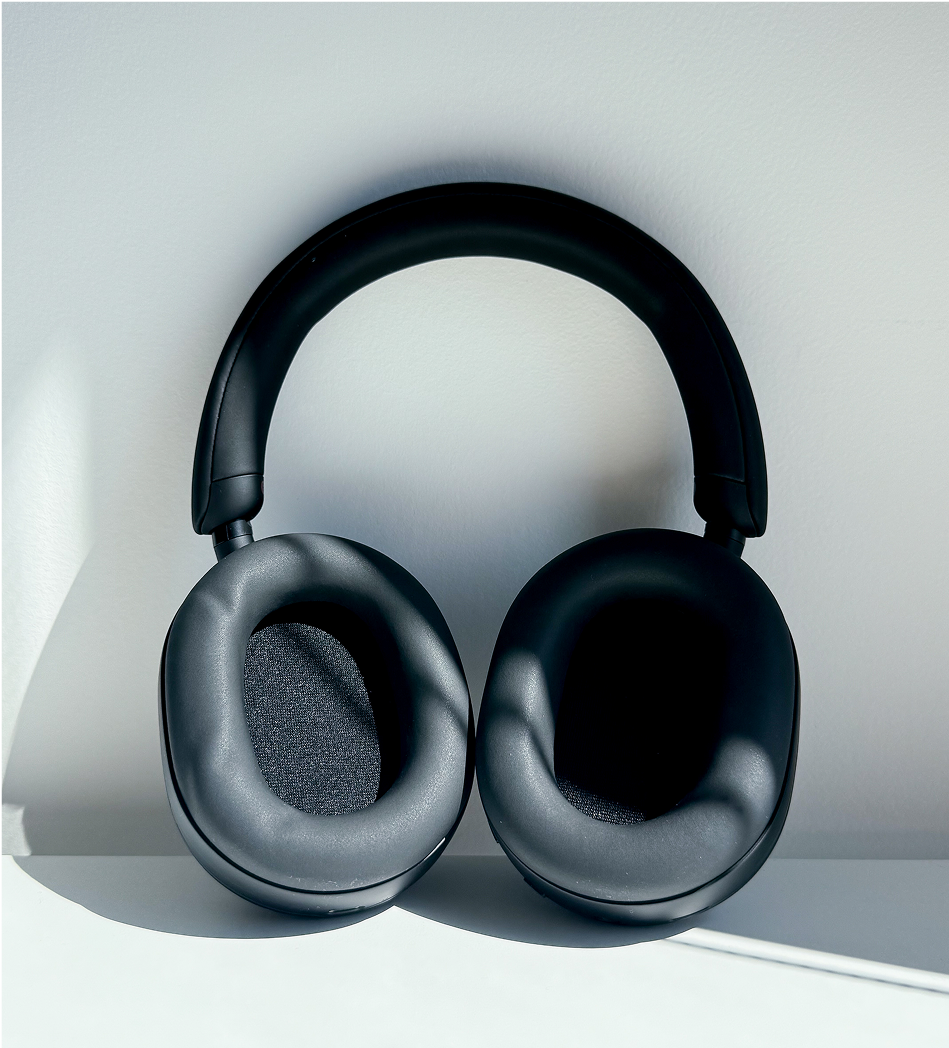

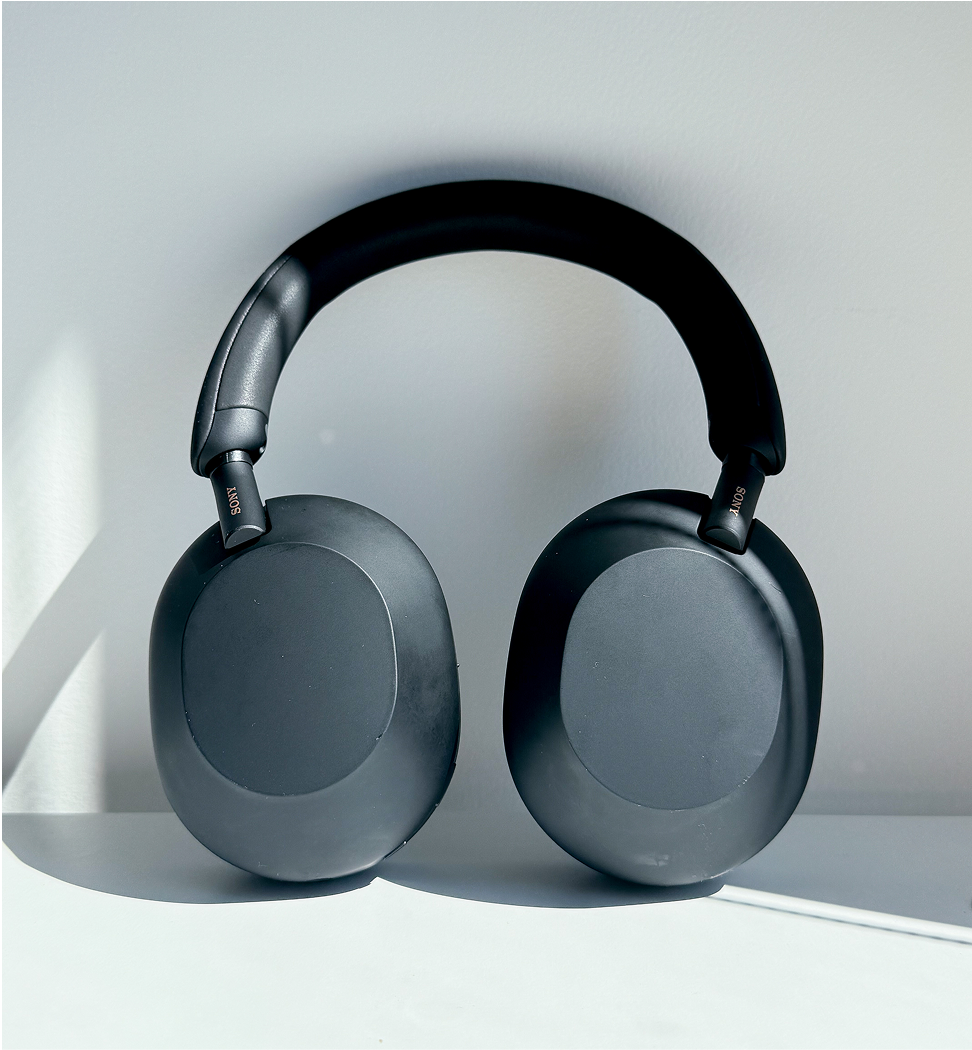

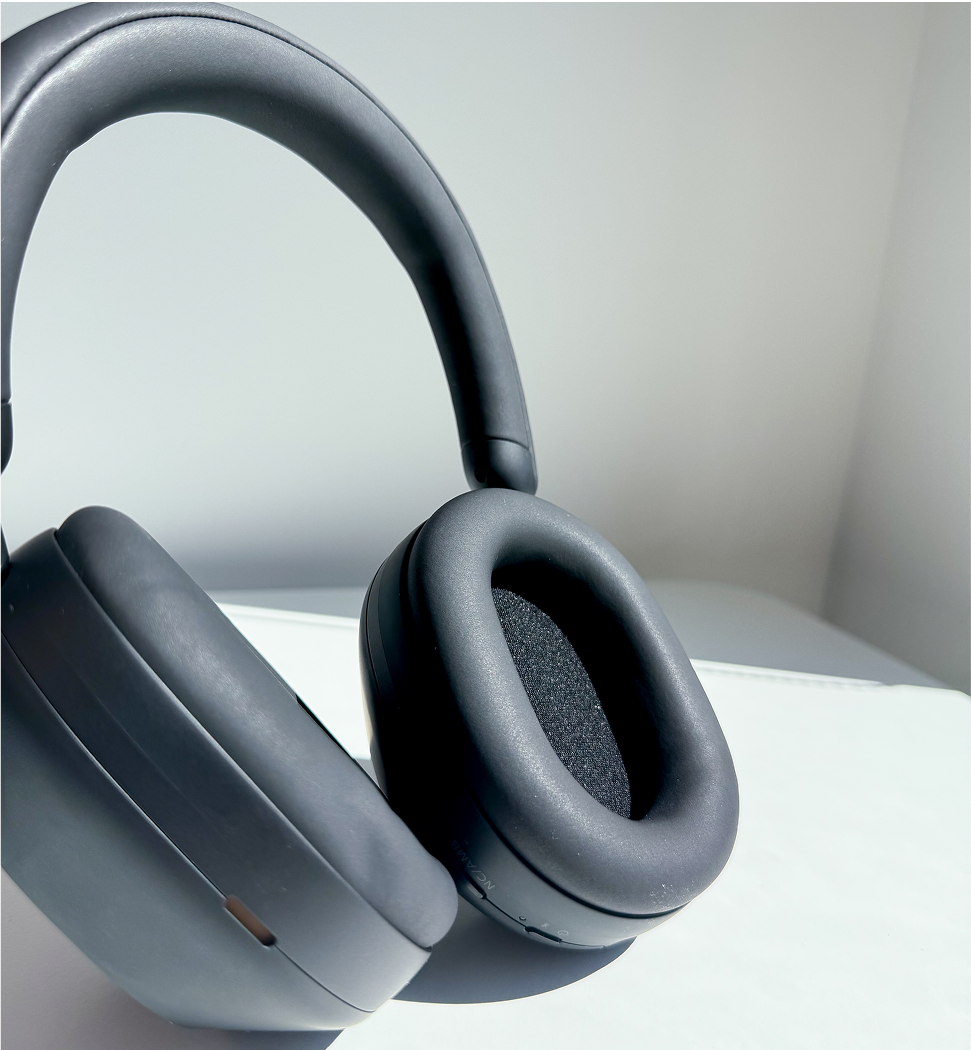

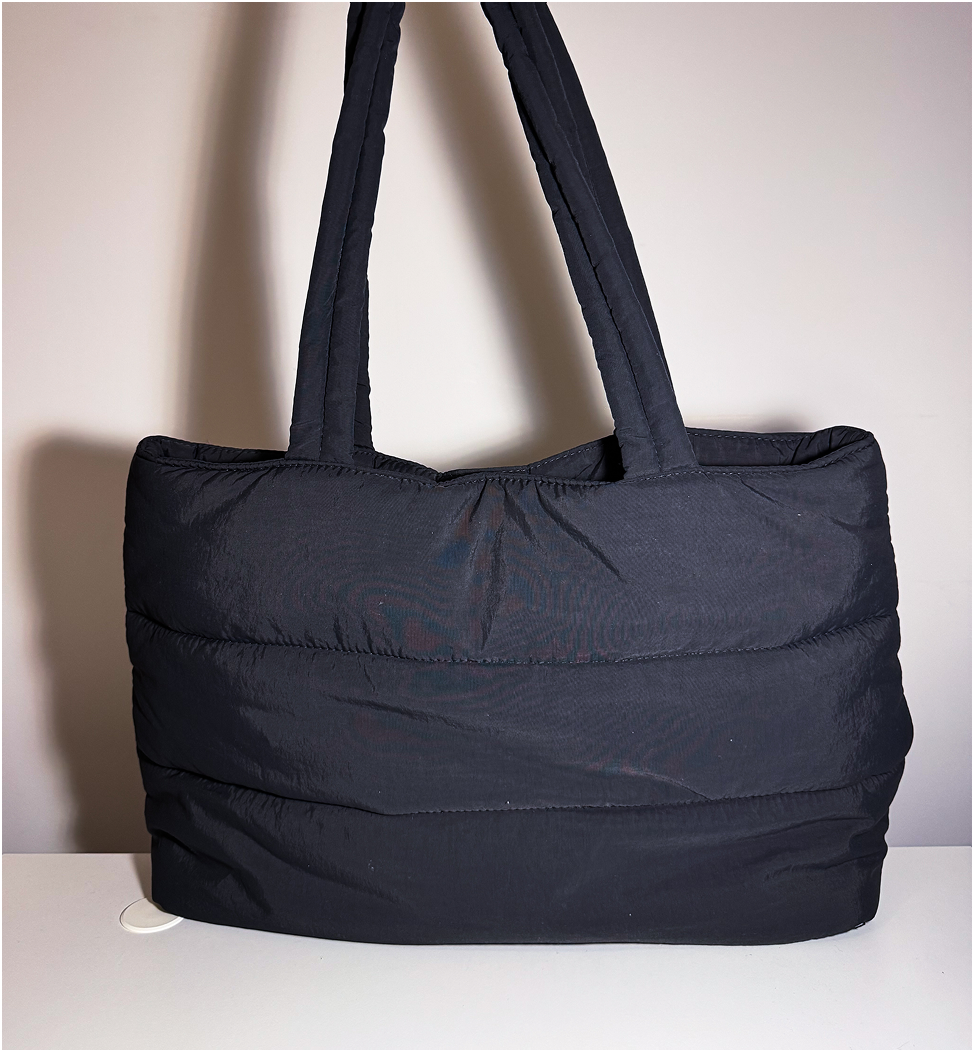

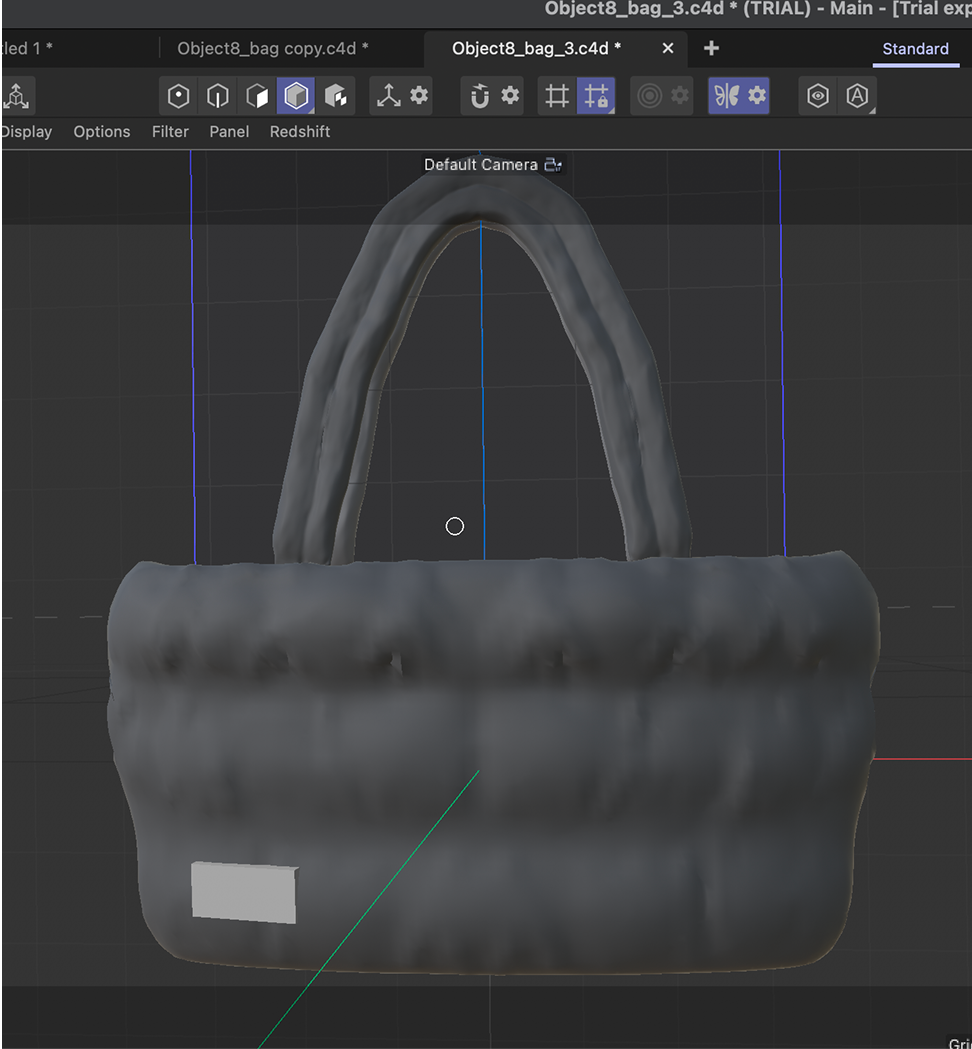

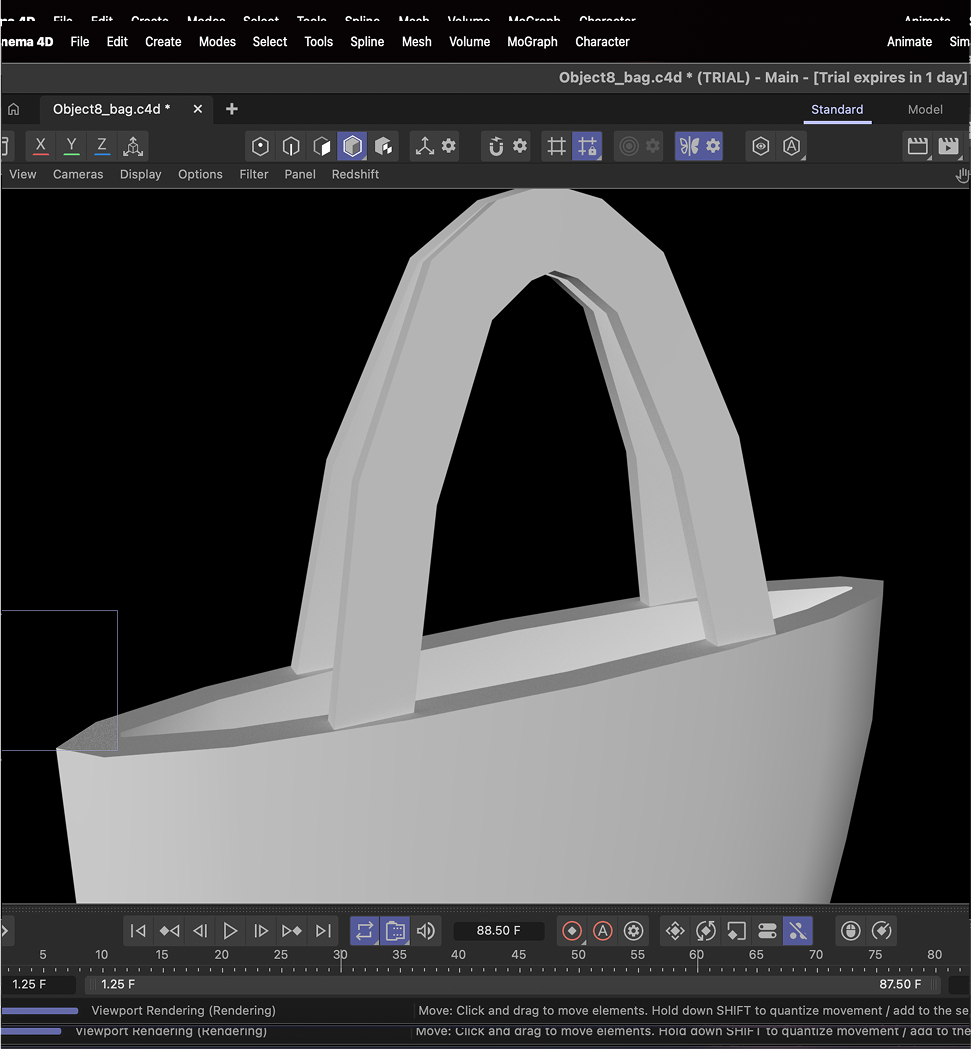

Image of experimentation in C4D, modelling the basic shape of the bag starting with a cylinder as the base and using symetry to match the handle. Image of bag after the sculpt tool was used to texture the bag and emulate the puffer material digitally. Original reference image of the bag being modelled, front view. Image of textured bag with colour and label added. Image of close up on bag details. Image of the bag sculpted and rendered. Close up image of the starbucks keychain on the bag. Image of the back view of the bag. Close up image of the miffy keychain on the bag. Image of side view of the Sony WH 1000xm5. Image of the headphones modelled in C4D with subdivision surface. Image of headphones from the front view. Image of headphones modelled in C4D utilizing symetry to accurately replicate the shape. Modelling the headphone using inset, extrude and scale to manipulate the shape and creating indentations. Image of the headphones from the back view. Side view image of the headphones. Image of headphones rendered on C4D. General shape was achieved however adjustments need to be made to thicken the arch. Image of the top view of the Smiski figurine. Smiski figurine's face being modelled on C4D. Image of the front view of the smiski figurine. Image of the Smiski figurine head being rendered. Image of the body of the Smiski figurine being modelled initially from a cube as the base shape that was modified in accordance to module 4-6. Image of Smiski figurine, from the back view. Image of Smiski figurine from the side view. Image of the Smiski's body being modelled with arms added.

Material Workshop 1

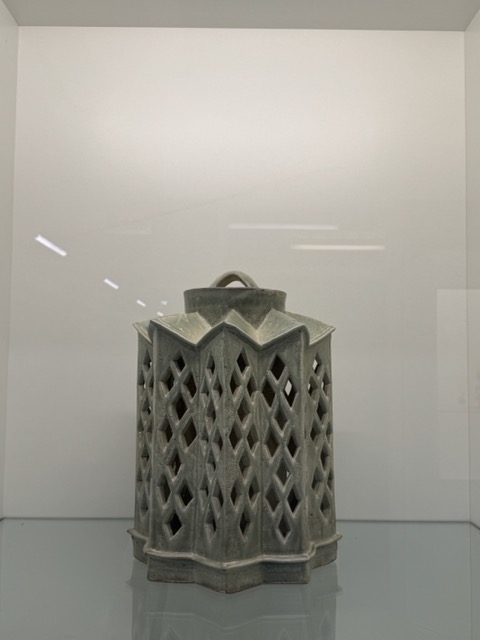

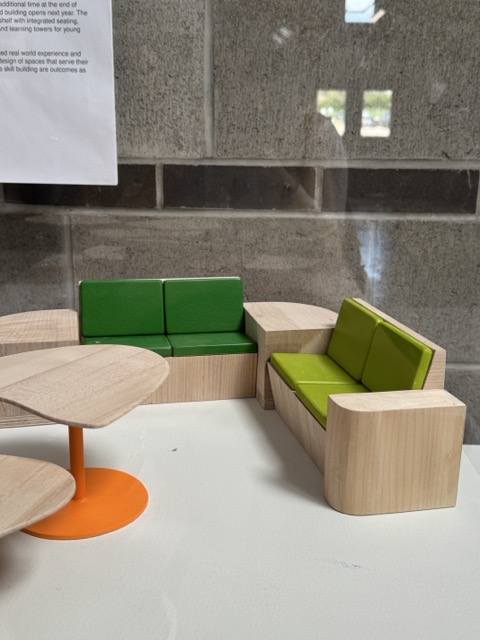

This is an image of a mini furniture set by Sheridan Furniture students. The materials observed here appears to be wooden for the base of the chairs and top of the table with a plastic material as the accent, in green, lime green, and orange. This is an image of a ceramic work made by a Sheridan ceramic student with clay which was fired then ceramic glaze added to achieve the reflective look. This image shows multiple shoes hung on the wall and arranged artistically, made my Sheridan ceramic students, they appear to be made of clay that was fired in the kiln to retain the shape however without glaze, making them appear to have a rougher texture.

Material Workshop 2

This is an image of a a stuffed animal/plushie of cookie monster from sesame street. Its eyes seem to be created with a felt material as observed from the fibres surrounding it from wear and tear. Additionally, the rest of the body seems to be constructed from a fur type fabric. <br><br> <b>Material state:</b> refined<br><b>Material plasticity</b>: rigid<br><b>Material use:</b> entertaiment<br><b>Feels:</b> fluffy, soft<br><b>Colour:</b> blue, white, black This is an image of a piece of wood. <br><br> <b>Material state:</b> refined<br><b>Material plasticity:</b> rigid<br><b>Material use:</b> furniture, decoration, tools<br><b>Feels:</b> smooth sides, rough and sharper ends<br><b>Colour:</b> brown This is a picture of a glass object with a flat surface on one end and curved on the top. <br><br><b>Material state:</b> refined<br><b>Material plasticity:</b> pliable<br><b>Material use:</b> decoration<br><b>Feels:</b> smooth all around<br><b>Colour:</b> transparent, reflects light

Project 1

Project 1 Models

Published 3D Model 1

Cologram liptint object

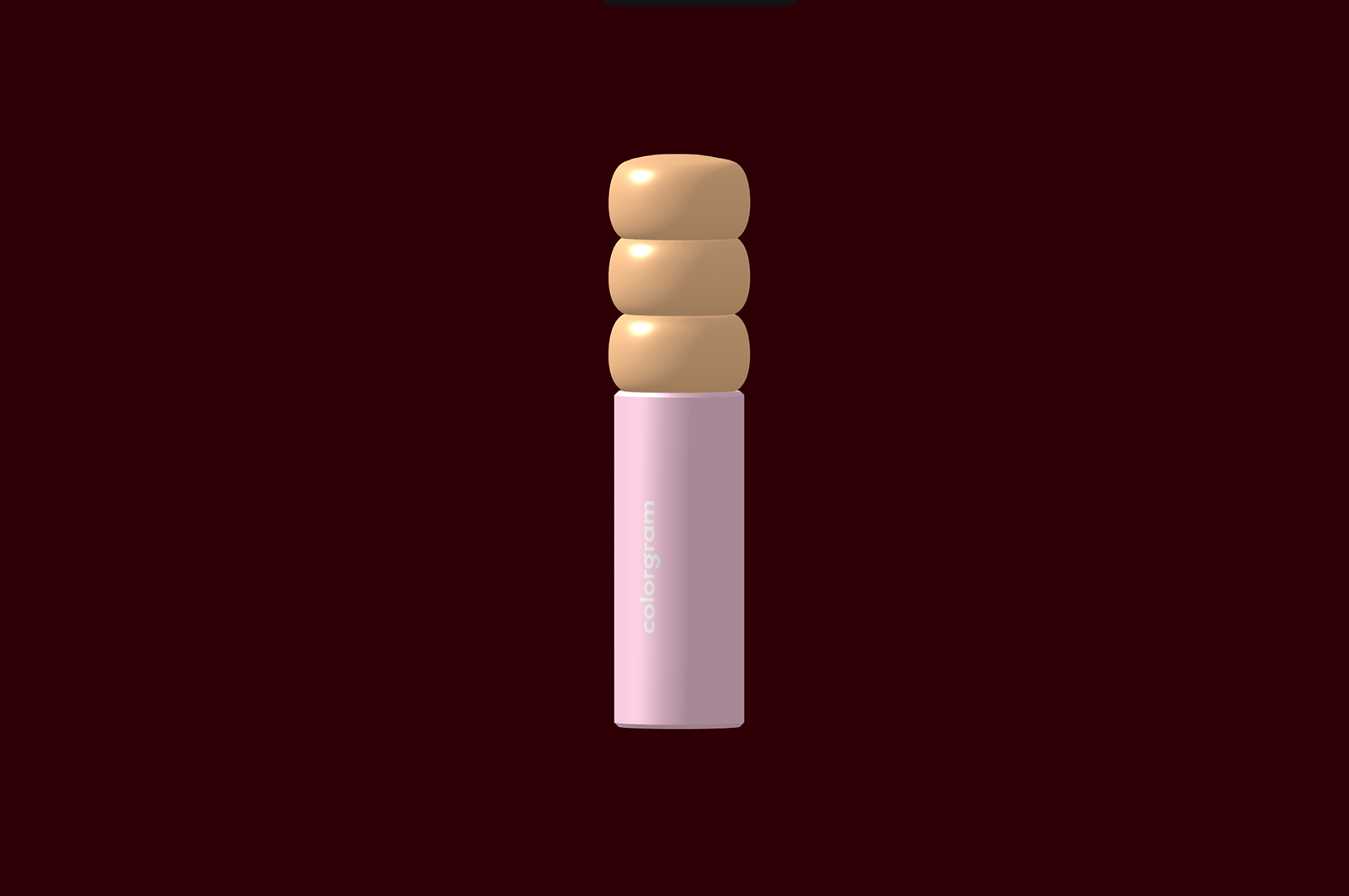

Digital object was published in spline and lighting adjusted to simulate the real physical object. <div class='container'><iframe class='responsive-iframe' src='https://my.spline.design/liptint-g29HJdjyQcEgkuUrcHWXsEVA/'></iframe><div>

Published 3D Model 2

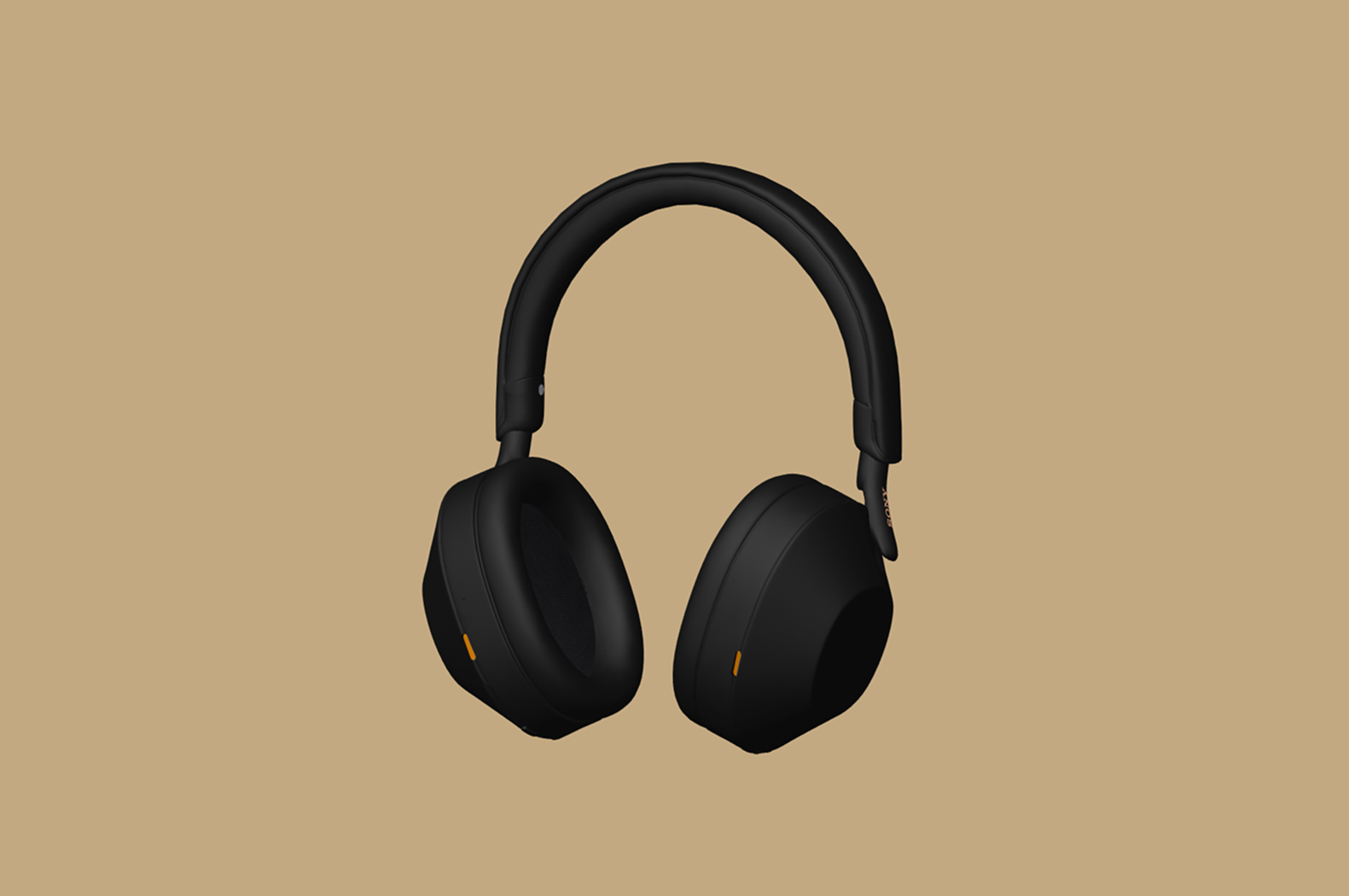

Sony WH 1000xm5 object

Digital object was published in spline and additional logos and textures were added.<div class='container'><iframe class='responsive-iframe' src='https://my.spline.design/headphones-mbjx0P889qixM6Mwuta8FPP0/'></iframe></div>

Published 3D Model 3

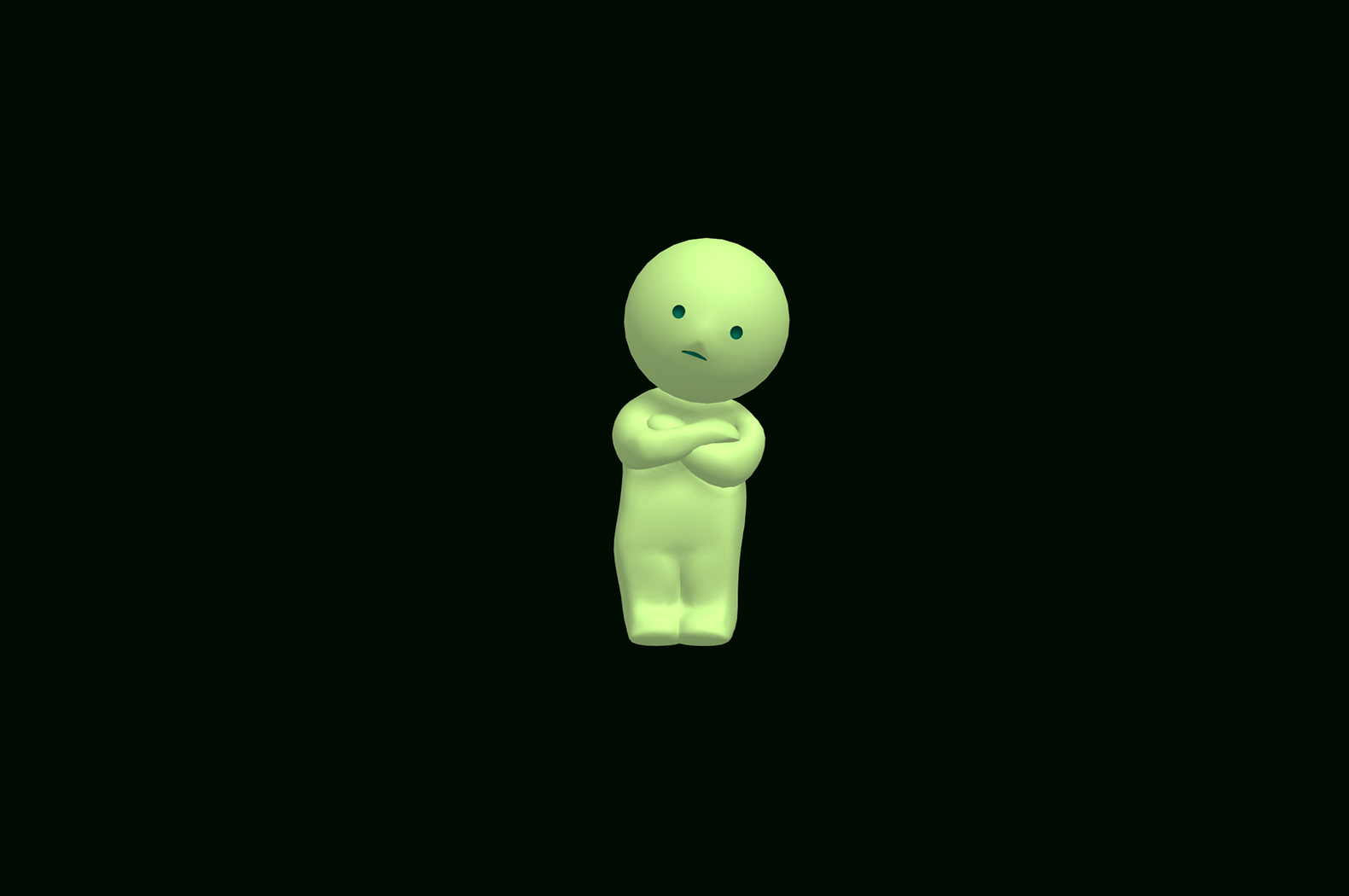

Smiski figurine object

Digital object was published in spline and material set to emulate it glowing in the dark. <div class='container'><iframe class='responsive-iframe' src='https://my.spline.design/smiski-XyWgWTWr3TEhrdoeX1Z9g0YS/'></iframe></div>
×
